| SYSTEM | |
| MB FORM FACTOR | Rackmount |
| CPU | Intel® LGA1851 Socket, Processor Arrow Lake-S (MAX. TDP 65W) |
| CHIPSET | Intel® Q870 |
| MEMORY | 2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 96GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (dTPM, Optional) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 11 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~36V |
| POWER ON MODE | AT / ATX (Default) Mode |
| DISPLAY | |
| GPU | Intel® Graphics |
| Type-C DP | 1 x Type-C DP1.4a (Max Resolution: 4096 x 2160@60Hz) |
| DP | 1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek codec |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE |
| SYSTEM I/O | |

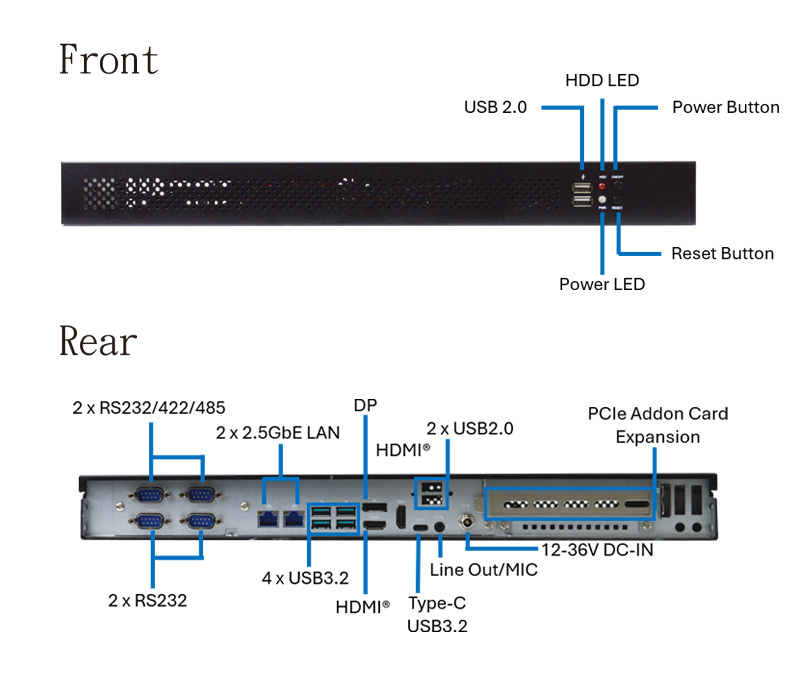

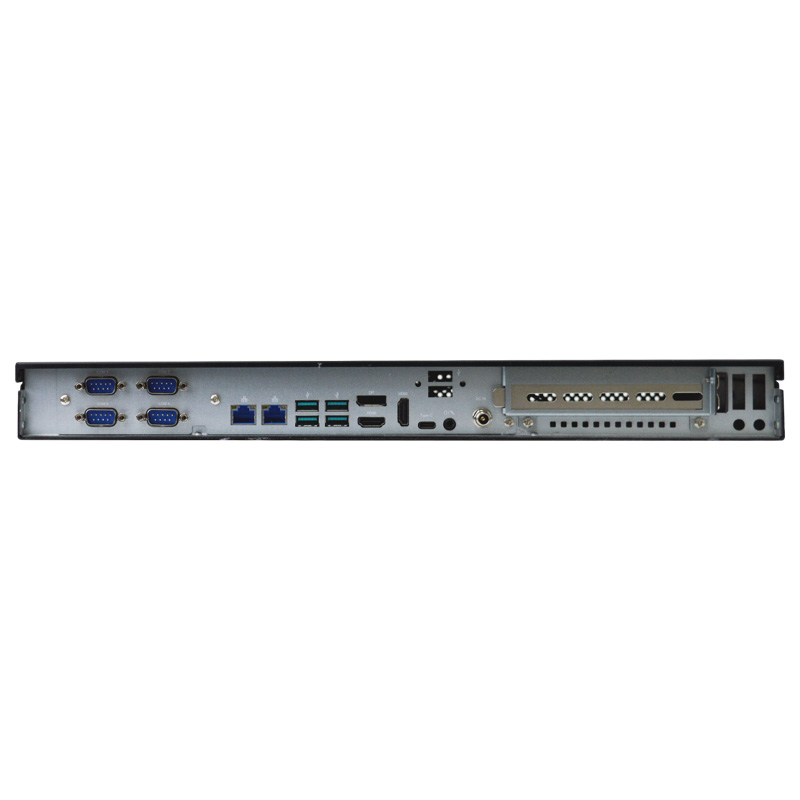

| REAR PANEL I/O | 2 x RJ45 4 x USB3.2 (Gen 2) 2 x USB 2.0 1 x USB 3.2 Gen 2 Type-C support DP1.4a display output 2 x HDMI® 1 x DP 1 x Audio ( Line out, MIC Combo) 1 x DC-in (Lockable) 2 x RS-232 2 x RS-232/422/485 |

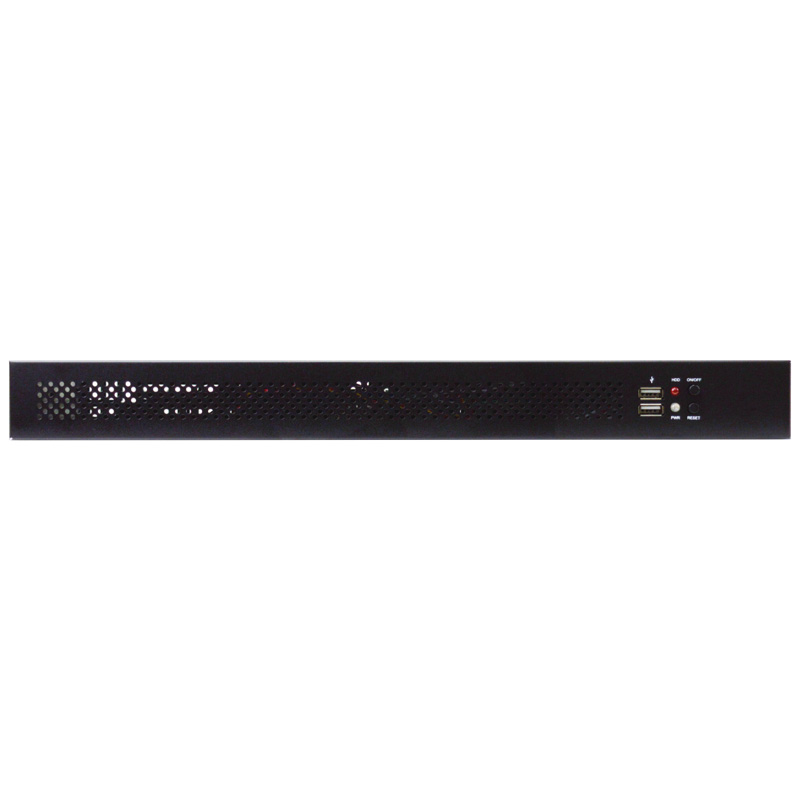

| FRONT PANEL I/O | 1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 2 x USB 2.0 |
| STORAGE | |
| SATA | 2 x 2.5" SATA 6Gb/s internal drive bay (only Support 2.5" HDD with a hight ≤ 10mm) |
| RAID | Intel® VMD RAID 0, 1 or SATA RAID 0, 1, 5 |
| EXPANSION | |
| PCIe | 1 x PCIe x16 |
| M.2 | 1 x M-Key 2242 (PCIe Gen 4 x4) support NVMe 1 x M-Key 2280 (PCIe Gen 4×4 w/ SATA interface) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) Support CNVio 1 x B-Key 3042/3052 (PCIe Gen 4x1/USB3.2/USB 2.0) Support 4G/5G Module |
| SIM | 1 x Nano SIM Card Slot |
| MECHANICAL | |
| DIMENSIONS (W x H x D) | 430.0 (W) x 252.0 (D) x 44.0 (H) mm |
| GROSS WEIGHT | 4.2kg |
| NET WEIGHT | 5.2kg |
| CONSTRUCTION | Metal Heatsink + Metal Chassis |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| DROP | ISTA PROJECT 1A |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 50°C (32°F ~ 122°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| STORAGE HUMIDITY | 10 ~ 90% @40°C, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, China RoHS, WEEE, REACH, TSCA Declaration, PRO65 Declaration, CMRT Report |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| L01AS077-F | Lockable Adapter DC-19.5V/9.23A 180W, FSP180-AJBU3 | 1 |
| Change according to shipping area | Power cord | 1 |
| LCSCJC150-F | JC150 Screw Pack | 1 |
| G01-SATA3-BL-1F | SATA Cable 50cm | 1 |
| G01-PW4PS-SA15-F | SATA Power Cable | 1 |
| F07-FN9628-1F | LGA1851 CPU FAN Module | 1 |
| G01-LEDG-2P-40-F | POWER LED GREEN+CABLE 40cm | 1 |
| G01-LEDR-2P-40-F | HDD LED RED+CABLE 40cm | 1 |
| G01-PWSW-2P-40-F | PW-SW+CABLE 40cm | 2 |
| HCS150MA01B-F | JC150 U Shape Handle | 2 |
| HCS150MS01B-F | JC150 L Shape Metal Clip | 2 |
| J2PCIE16RISER1AR10 | PCI-E X16 RISER CARD | 1 |
TOP∧
| PART NUMBER | B150IARS1-A111 | B150IARS1-A211 |
| SECURITY | Intel® PTT (fTPM) | TPM 2.0 (dTPM) |
