| SYSTEM | |
| MB FORM FACTOR | Micro-ATX |
| CPU | Intel® LGA1851 Socket, Processor Arrow Lake-S (MAX. TDP 125W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® Q870 |
| MEMORY | 4 x DDR5 6400MT/s, Dual Channel CU-DIMM, up to 256GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) TPM2.0 (dTPM, Optional) |
| RTC BATTERY | Lithium Battery |
| DIMENSION (W X D) | 244.0 (W) x 244.0(D) mm (9.6" x 9.6") |
| OS SUPPORT | Windows® 11 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | ATX Power Supply |
| POWER ON MODE | AT / ATX (Default) Mode |
| CONNECTOR | Internal 24+8-pin ATX Header |
| DISPLAY | |
| GPU | Intel® Graphics |
| LVDS | 1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP) |
| DP | 1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| Line-in | 1 x Audio Jack for Line-in |
| Line-out | 1 x Audio Jack for Line-out |
| MIC-in | 1 x Audio Jack for MIC-in |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE 1 x RJ45 for Realtek® RTL8156 2.5GbE |
| USB PORT | |
| USB | 6 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 2 x USB 3.2 Gen 1 Internal Header for 6 x USB 2.0 |
| SERIAL PORT | |
| COM | 1 x DB-9 for RS-232/422/485 Internal Header for 5 x DB-9 for RS-232 Internal Header for 4 x RS-232 (Optional) |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| I2C | Yes |
| FAN | 1 x CPU Fan Header 2 x System Fan Header |
| FRONT PANEL | HDD Active LED Power LED Power On/Off Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x AT/ATX Mode Selection |
| STORAGE | |
| SATA | 2 x SATA III |
| RAID | Intel® VMD RAID 0, 1 & SATA RAID 0, 1, 5 |
| EXPANSION | |
| M.2 | 1 x M-Key 2242/2260/2280/22110 (PCIe Gen4 x4) support NVMe 1 x M-Key 2242/2280 (PCIe Gen 4 x4 / SATA III) support NVMe 1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module 1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) |
| PCIe | 1 x PCIe Gen 5 x16 2 x PCIe Gen 4 x4 1 x PCIe Gen 4 x1 |
| SIM | 1 x Nano SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS China RoHS WEEE REACH TSCA Declaration PRO65 Declaration CMRT Report |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |

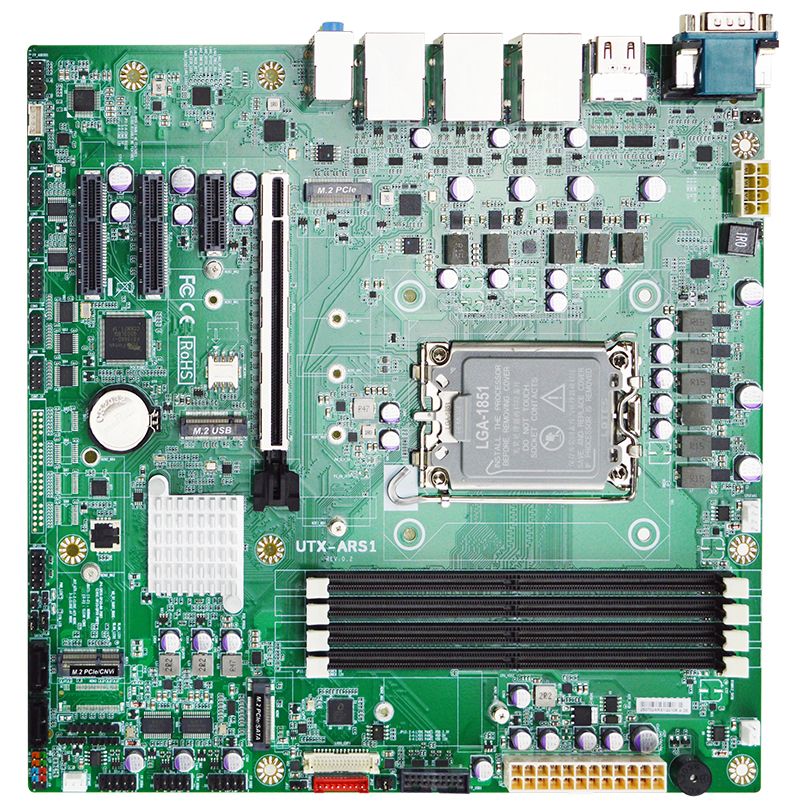

| UTX-ARS1 | UTX-ARS1 Mother Board | 1 |
| G01-COM-H2M22-1F | COM Cable | 3 |
| G01-SATA3-BL-1F | SATA Cable, 50cm | 2 |
| F04-MB-090-F | I/O Shield | 1 |
| F01-SPBK-1F | Jumper | 2 |
TOP∧
| PART NUMBER | UTX-ARS1-Q8700010 | UTX-ARS1-Q8700210 |
| CPU | Intel® Socket LGA1851 CPU | Intel® Socket LGA1851 CPU |
| SECURITY | Intel® PTT (fTPM) | Intel® PTT (fTPM) & TPM (dTPM) Default |
