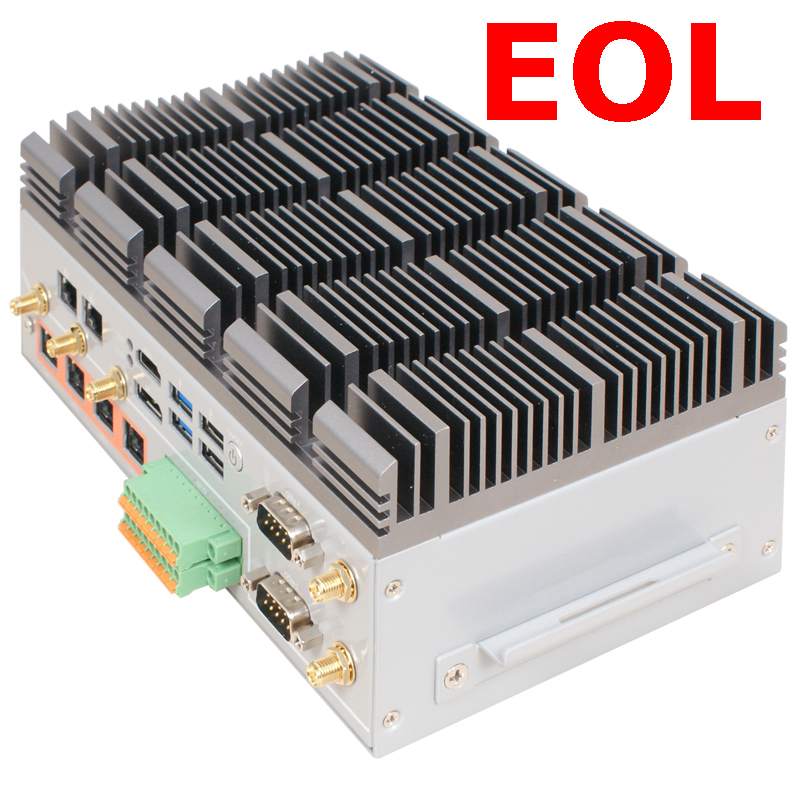

The HM-5000S series Fanless system features the Intel Gen. 8th/10th Core I Processor power, with rich IO and excellent heat dissipation solution. HM-5000S series supports 12~36V power and Over-voltage & Over-current protection, and remote power switch by terminal block connection.
HM-5000S supports rich internal IO options: Dual Channel SODIMM, M.2 M Key with support NVMe SSD, M.2 E Key for Wi-Fi6 Module installation, and M.2 B Key for 4G/5G module connection in a compact size.
| 產品規格 | TOP∧ |
|
Model |
– HM-5002S (vPRO Model) |
|
General |
|
|
Certification |
– FCC, CE, ROHS |
|
Dimensions |
– 216.8 x 124 x 86mm (W x D x H) |
|
Mounting |
– Wall Mount, Din Rail Mount |
|
Power Requirements |
– 12 ~ 36VDC |
|
Power Consumption |
– Change according to CPU |
|
OS Support |
– Windows 10/11, Linux |
|
Hardware |
|
|
BIOS |
– AMI 128Mbit Flash BIOS |
|
CPU |
– HM-5002S (8365Ue, vPRO Model): Intel® Whiskey Lake Mobile U i5-8365Ue |
|
Memory |
– 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB) |
|
Graphics |
– Intel® UHD Graphics (by CPU) |
|
Ethernet |
– 1* Intel® i219LM GbE |
|
Storage |
– 1* 2.5” external cold-swap SATA3 bay |
|
Expansion |
– 1* M.2 E key (2230 size, CNVi interface for WIFI/BT) |
|
Front I/O Interface |
|
|
Serial Port |
– 2* RS-232/422/485 with DB9 connectors, automatic RS-485 data flow control |
|
Display |
– 1* HDMI 1.4b, support 4096 x 2304@30Hz |
|
LAN |
– 6* RJ45, 10/100/1000 Mbps |
|
GPIO |
– 16 bit GPIO (5V/12V) |
|
USB |
– 2* USB3.0 |
|
LED |
– 1* Power LED |
|
Power Button |
– 1* power button (Power LED) |
|
Side I/O Interface |
|
|
Power Connector |
– 1* 3 Pin, terminal Block with lock for Main board |
|
Front Power Button |
– 1* 2Pin for remote power switch function |
|
Environment |
|
|
Temperature |
– Operating：-10 ~ 50°C |
|
Relative Humidity |
– 10 ~ 90% RH, non-condensing |
|
CE/LVD/FCC Protection |
– EN 55032 : 2015 |
|
Warranty |
|
|
Warranty |
– 2 Years Limited Warranty |
* 規格如有更改，恕不另行通知，不負責打字錯誤。 不含HDD或作業系統。
