| SYSTEM | |
| MB FORM FACTOR | Others |
| CPU | Onboard Intel Atom® x7835RE Processor (Formerly Amston Lake, TDP 12W) Onboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W) Onboard Intel Atom® x7425E Processor (Formerly Alder Lake-N, TDP 12W) Onboard Intel® Processor N150 (Formerly Twin Lake, TDP 6W) Onboard Intel Atom® x7433RE Processor (Formerly Amston Lake, TDP 9W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB |
| BIOS | AMI Flash ROM |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) Default & TPM (dTPM) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 11 (64bit), Linux, pfSense, OpenWrt |
| POWER | |
| POWER REQUIREMENT | DC-in 12V 60W Adapter: AC100~240V, DC12V/5.0A |
| POWER ON MODE | AT / ATX (Default) Mode |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| HDMI® | 1 x HDMI® 2.0 (Max Resolution: 3840 x 2160@60Hz) |
| LAN | |
| ETHERNET | 4 x RJ45 for Intel® I226-V 2.5GbE 2 x GbE SFP |
| SYSTEM I/O | |

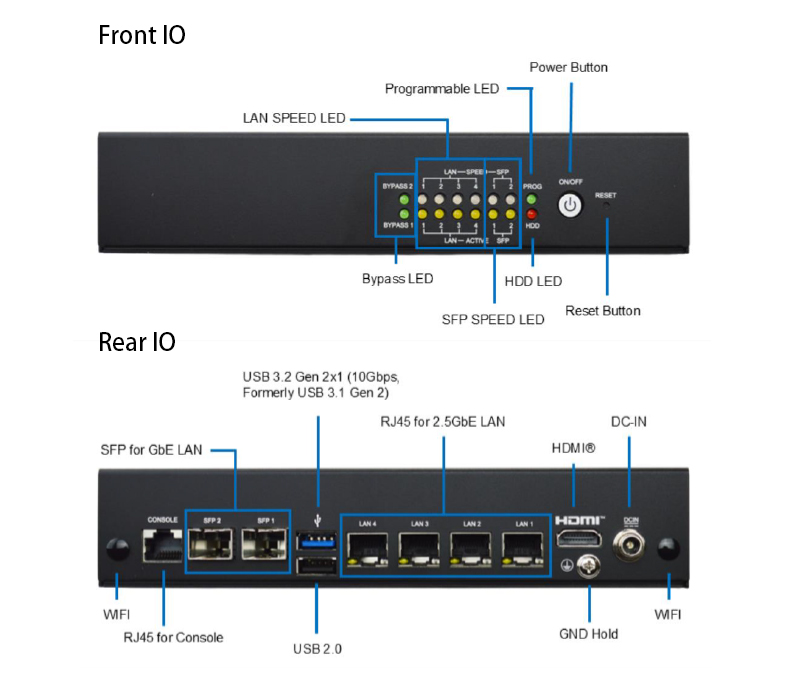

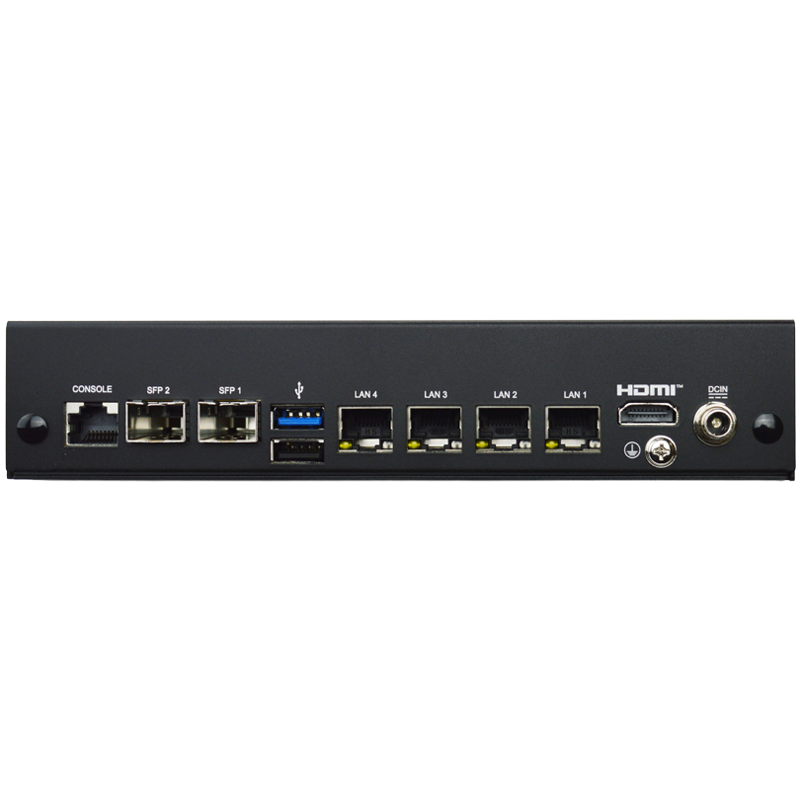

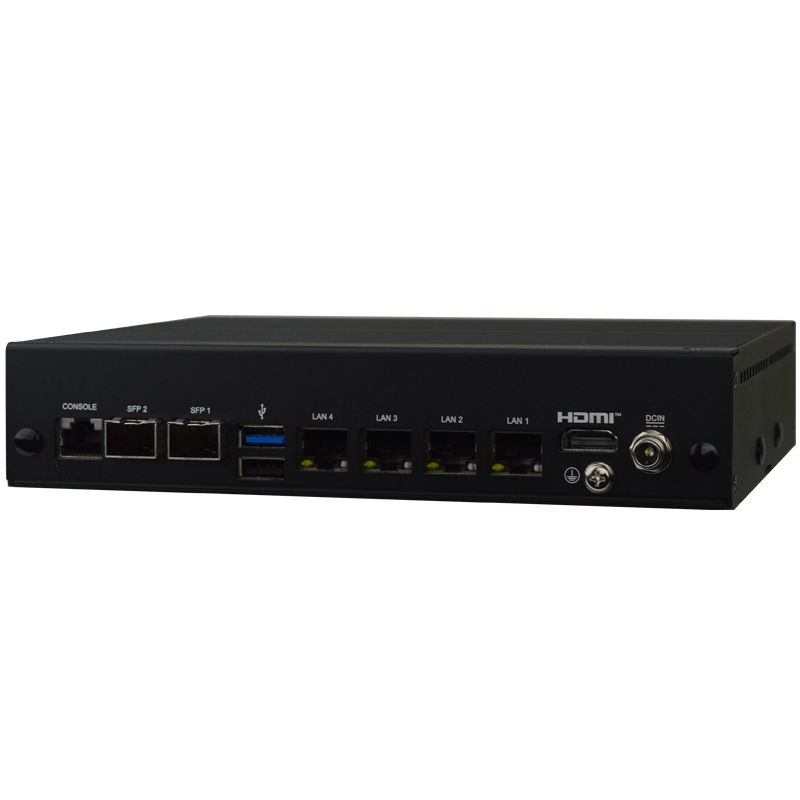

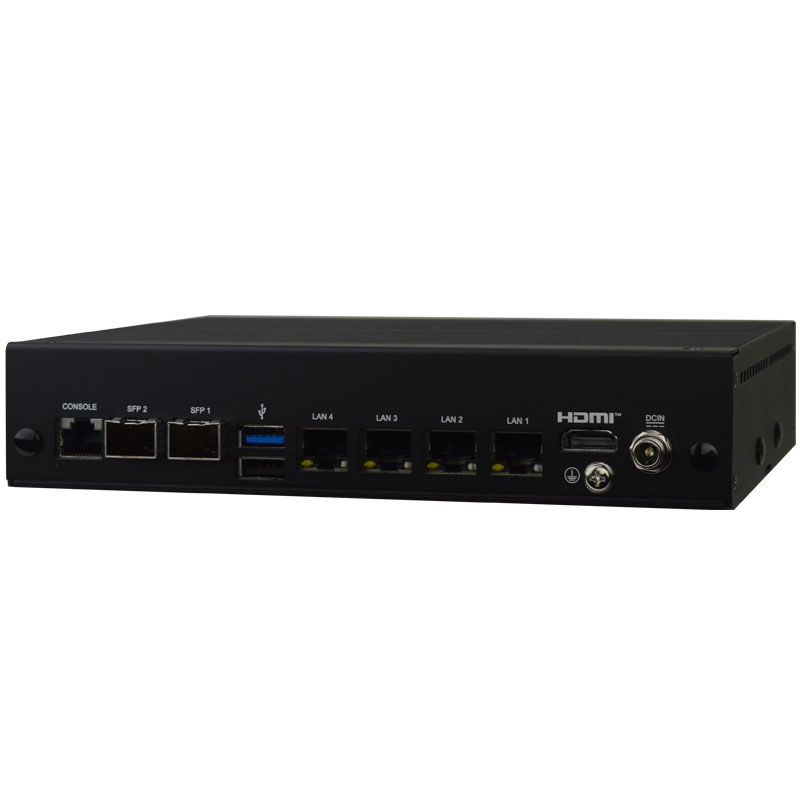

| REAR PANEL I/O | 1 x HDMI® 1 x USB 2.0 1 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) 4 x RJ45 for 2.5GbE LAN 2 x SFP for GbE LAN 1 x RJ45 for Console 1 x Grounding Screw |

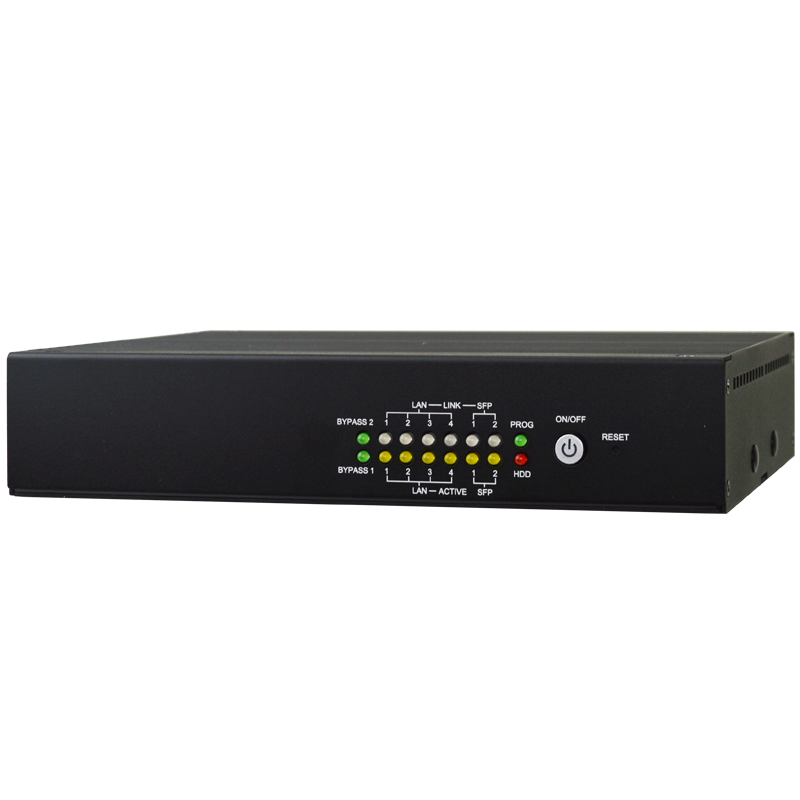

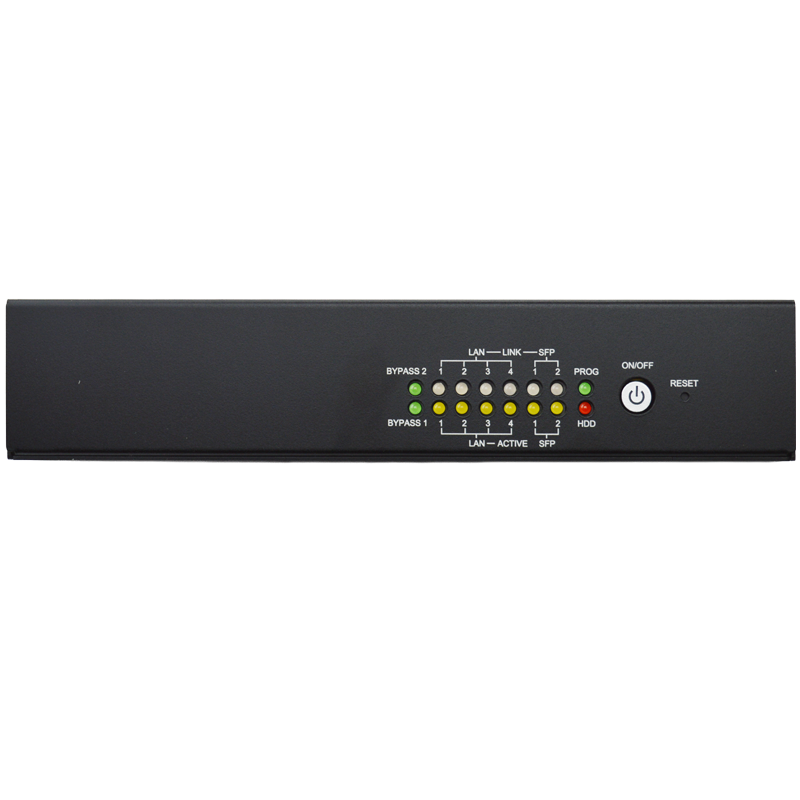

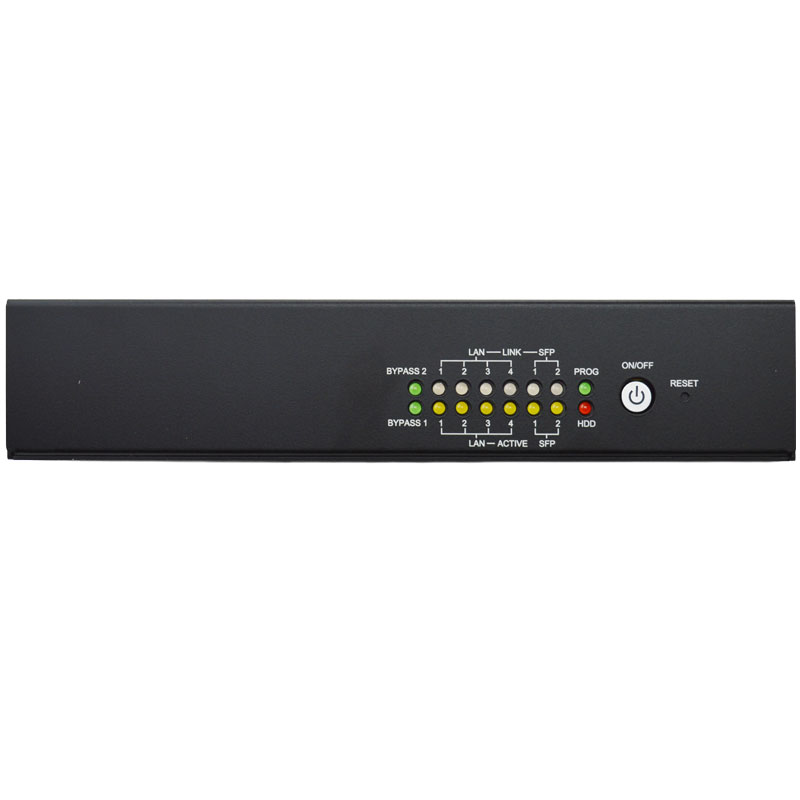

| FRONT PANEL I/O | 1 x Power Button 1 x Reset Button 1 x HDD LED 4 x LAN SPEED LED 4 x LAN ACTIVE LED 2 x SFP SPEED LED 2 x SFP ACTIVE LED 1 x Programmable LED 2 x Bypass LED |
| STORAGE | |
| eMMC | eMMC 64GB (By Request) |
| EXPANSION | |
| M.2 | 1 x E-Key 2230 (USB 2.0/PCIe x1) for Wi-Fi/BT Module 1 x B-Key 3042/3052 (USB 3.2) for 4G/5G/LTE 1 x M-Key 2280 (SATA III/PCIe Gen 3 x1) support NVMe |
| SIM | 1 x Nano SIM Card Slot |
| OTHERS | |
| OTHER | 4 x Wi-Fi Antenna Holes 1 x Wi-Fi LED Header 1 x 4G/5G/LTE LED Header |
| MECHANICAL | |
| MOUNTING | Desktop, Wallmount |

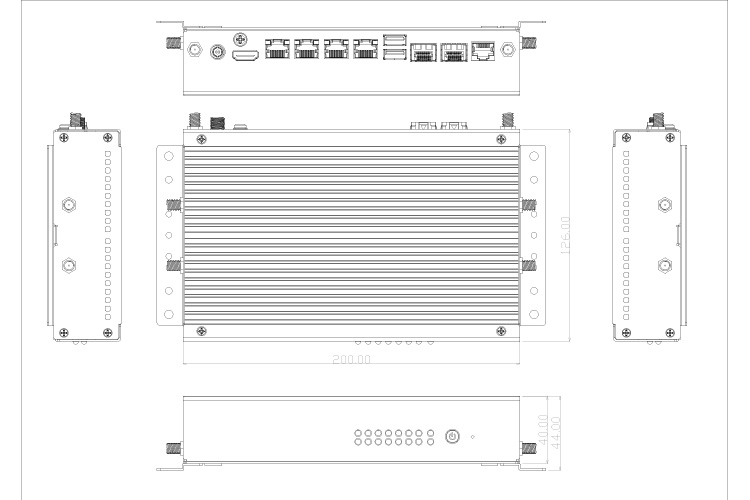

| DIMENSIONS (W x H x D) | 200.0 (W) x 126.0 (D) x 40.0 (H) mm (6.0" x 5.67" x 1.57") |
| GROSS WEIGHT | 1.2 kg (2.6lb) |
| NET WEIGHT | 1.0 kg (2.2lb) |
| CONSTRUCTION | Aluminum Heatsink + Metal Chassis |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -10°C ~ 50°C (14°F ~ 122°F) with 0.5 m/s airflow |
| STORAGE TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| STORAGE HUMIDITY | 0 ~ 95% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| BFNZASL1 | System | 1 |
| L01AS052-F | Adapter 12V/5A 60W | 1 |
| Change according to shipping area | Power cord | 1 |
| LCSCHBJC3XX-F | Screw Pack | 1 |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| DDR5 Memory | — | — |
| M.2 Storage | — | — |
TOP∧
| PART NUMBER | BFNZASL1-A111 | BFNZASL1-A211 | BFNZASL1-A311 | BFNZASL1-A411 | BFNZASL1-A511 |
| CPU | Intel® Atom® x7835RE Processor | Intel® Processor N97 | Intel® Atom® x7425E Processor | Intel® Atom® N150 Processor | Intel® Atom® x7433RE Processor |
