JNF931

Intel® Gemini Lake/Gemini Lake-R SoC CPU, Support DDR4 up to 8GB, Dual 4k@60Hz HDMI, Support Intel CNVi

Features
1. Intel® Gemini Lake/Gemini Lake-R SoC Processor (TDP 10W)
2. 2* DDR4 2400MHz SO-DIMM up to 8 GB
3. 1* 10/100/1000 Base-TX Ethernet Ports
4. 2* HDMI, 1* eDP support triple display
5. 1* COM, 2* USB3.1 (Gen.1), 4* USB2.0
6. 1* M.2 M-key (2242/2280)support NVMe, 1* M.2 E-key (2230 w/ CNVi)
7. 1* SATA III (6Gb/s), 32GB eMMC onboard (JNF931G32-4125)

　Inquiry

Category:

Overview｜Application｜I/O Diagram｜Specifications｜Standard Accessories｜Mechanical

　Overview TOP∧

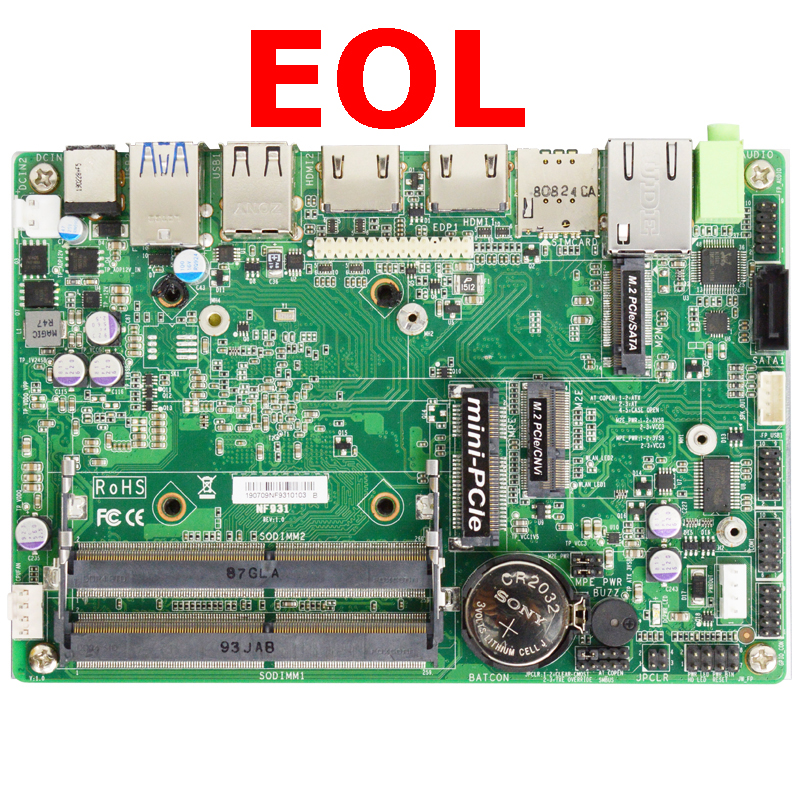

The JETWAY JNF931 is 3.5” form factor board adopts the Intel® Gemini Lake/Gemini Lake-R SoC Processor. The board supports two SO-DIMM DDR4 2400Mhz memory, up to 8GB. Featuring the integrated Intel® Gigabit Ethernet controller, the JNF931 offers one 10/100/1000Base-TX Ethernet device for network transmission. 32GB eMMC onboard and one SATAIII (6Gb/s) interface and one M.2 M-key support NVMe offer storage devices. Two USB3.1 Gen.1 ports, four USB2.0 ports and one COM port provide versatile expansion. The M.2 E-key can support WIFI/3G/4G and Intel CNVi interface. The JNF931 offers two HDMI2.0 ports and one eDP port which can support 3 independent displays. Because of the above features, JNF931 is suitable for Digital Signage, IOT Solution applications.

　Application TOP∧

● Digital Signage
● IOT Solution

　I/O Diagram TOP∧
　Specifications TOP∧

Model

– JNF931G32-4125 (Default)
– JNF931-4125

Form Factor

– 3.5” (5.8-in * 4.0-in, 148 * 102mm)

Processor System

– Intel® Gemini Lake-R SoC Processor
– AMI Flash ROM BIOS

Expansion Slot

– M.2 E-key (2230) Support CNVi, USB2.0 & PCIex1 interface
– 1* full size Mini-PCIe Support USB2.0 & PCIex1 interface

Memory

– 2* SO-DIMM DDR4 2400MHz Dual CH SDRAM non-ECC up to 8GB

Graphics

– Intel® HD Graphics, shared memory
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– 2* HDMI 2.0 (Max Resolution: 4096×2160@60Hz)
– Support Triple Displays

Ethernet

– 1* Intel® i211AT GbE

Audio

– 6 channel HD audio: Realtek ALC662VD
– 3W AMP speaker

Storage

– 1* SATAIII
– 32GB onboard eMMC (JNF931G32-4125)
– M.2 M-key (2242/2280) Support PCIex2(NVMe) & SATA interface

Integrated Storage

– 1* 32GB eMMC (option)

Rear I/O

– 2* USB3.1 (Gen1)
– 2* USB2.0
– 2* HDMI
– 1* Ethernet
– 1* SIM card slot
– Line-out
– DC-in (12V)

Internal Connector

– 2* USB2.0
– 1* eDP
– 1* RS232
– 1* SATAIII
– 1* GPIO (8 bit)
– 1* Audio Header
– 1* SMBUS
– 1* CPU FAN
– 1* AT mode

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10 ~ 255min)

Power

DC-IN 12V
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, LVD, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
