| SYSTEM | |
| MB FORM FACTOR | Others |
| CPU | Onboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB |
| BIOS | AMI 256Mb Flash ROM |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 256 Levels, 0~255 sec |
| SECURITY | Intel® PTT (Integrated fTPM) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 10 (64bit) Windows® 11 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12V 60W Adapter: AC100~240V, DC12V/5.0A |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| DP | 1 x DP 1.2 (Max. Resolution: 4096 x 2304@60Hz) |
| HDMI® | 1 x HDMI® 2.0 (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 2 Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| AMPLIFIER | 2 x 3W |
| LAN | |
| ETHERNET | 2 x RJ45 for Realtek® RTL8111H GbE |
| SYSTEM I/O | |

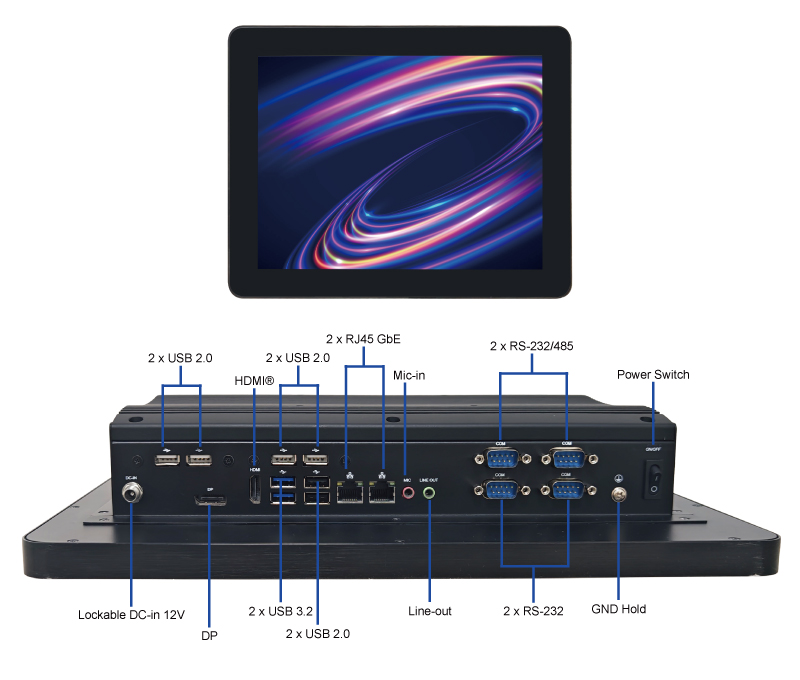

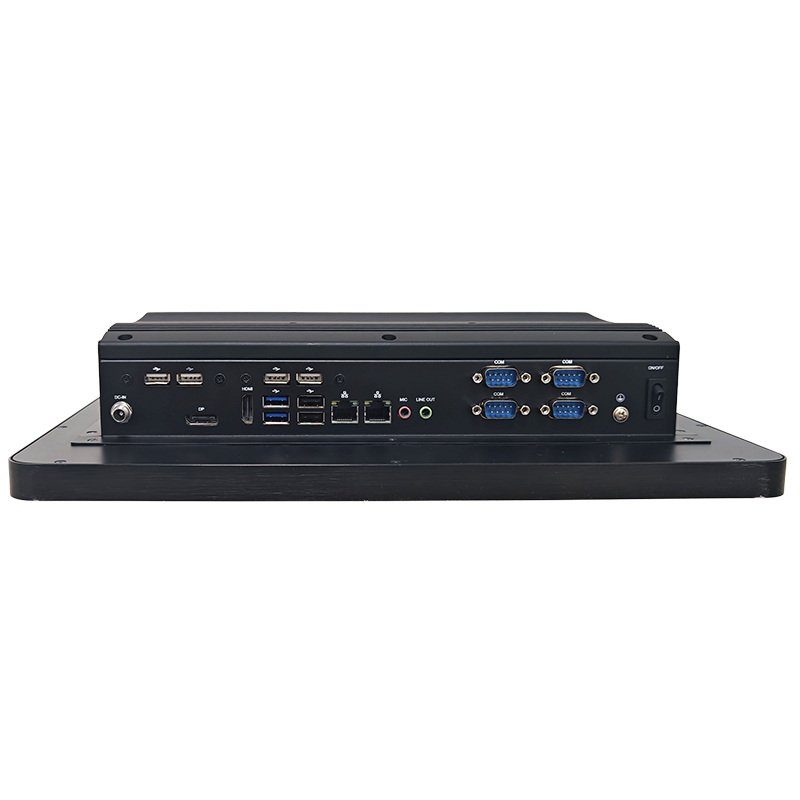

| I/O | 2 x USB 3.2 Gen 1 6 x USB 2.0 2 x RS-232 2 x RS-232/485 2 x RJ45 1 x HDMI® 1 x DP 1 x Locking Jack 12V DC input 1 x Power Button 1 x AUDIO (Line-out +MIC) |
| STORAGE | |
| SATA | 1 x 2.5” SATA bay 1 x SATA III (co-lay M-Key 2242, Optional) |
| EXPANSION | |
| M.2 | 1 x M-Key 2242/2280 (PCIe 3.0 x2) Support NVMe 1 x E-Key 2230 (CNVio/PCIe x1/USB2.0) Support WiFi/BT Module 1 × M.2 M-Key 2242 (SATA Interface, Default) |
| OTHERS | |
| OTHER | Support HPC-HB(6PCS) |
| MECHANICAL | |

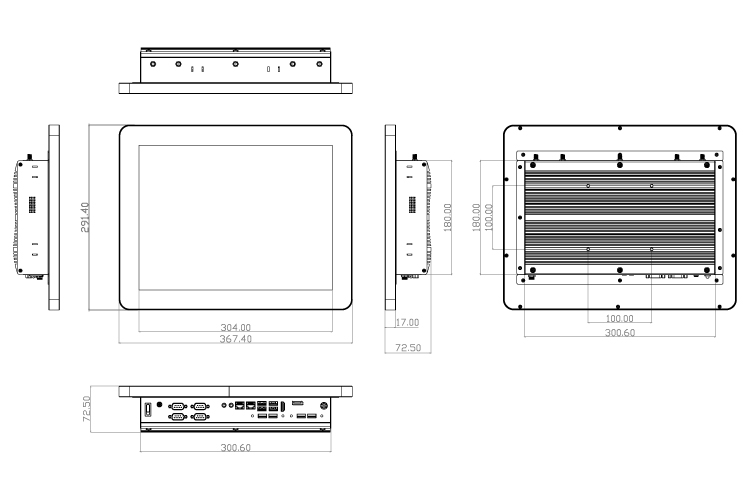

| DIMENSIONS (W x D x H) | 367.4 (W) x 291.4 (D) x 72.5 (H) mm |
| LCD | |
| DISPLAY TYPE | 15" TFT-LCD, LED |
| MAX. RESOLUTION | 1024 x 768 |
| MAX. COLORS | 16.7M |
| LUMINACE | 350 nits |
| VIEWING ANGLE | 178° (H), 178° (V) |
| BACK LIGHT | LED |
| TOUCH SCREEN | |
| TYPE | Projected Capacitive Type |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 1ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -10°C ~ 60°C (14°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| P150CMTX9700-N | P150CMTX9700-N | 1 |
| Change according to shipping area | Power cord | 1 |
| — | 60W AC-DC Adapter | 1 |
| PART NUMBER | DESCRIPTION | QTY |
| HPC-HB | Wall Mount Brackets | 6 |
| PART NUMBER | P150CMTX9700-N |
| CPU | Intel® Processor N97 |
| MEMORY | 1 x DDR5 SO-DIMM, up to 32GB |
| SECURITY | Intel® PTT (fTPM) |
| POWER REQUIREMENT | Adapter: AC100~240V / DC12V_5.0A_60W |
| GPU | Intel® UHD Graphics |
| DP | 1 x DP |
| HDMI | 1 x HDMI® |
| MULTIPLE DISPLAY | Support 2 Displays |
| ETHERNET | 2 x GbE |
| I/O | 2 x USB 3.2 Gen 1 |
| I/O | 6 x USB 2.0 |
| I/O | 1 x DC-in Jack (12V) |
| I/O | 1 x Power Button |
| I/O | 2 x RS-232 |
| I/O | 2 x RS-232/485 |
| I/O | 2 x RJ45 |
| I/O | 1 x Line-out |
| I/O | 1 x MIC-in |
| SATA | 1 x 2.5” SATA Bay |
| M.2 | 1 x M-Key 2242/2280 |
| M.2 | 1 x E-Key 2230 |
| M.2 | 1 x M-Key 2242 |
| OTHER | Support HPC-HB(6PCS) |
| OPERATING TEMPERATURE | -10°C ~ 60°C (14°F ~ 140°F) |
