| SYSTEM | |
| MB FORM FACTOR | ARM |
| CPU | Rockchip® ARM Cortex-A55 quad-core (up to 2.0 GHz) with 1 TOPS NPU |
| CHIPSET | Rock Chip® RK809-5 PMU |
| MEMORY | Onboard LPDDR4X 3200MT/s 4GB standard (8GB optional) |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) |

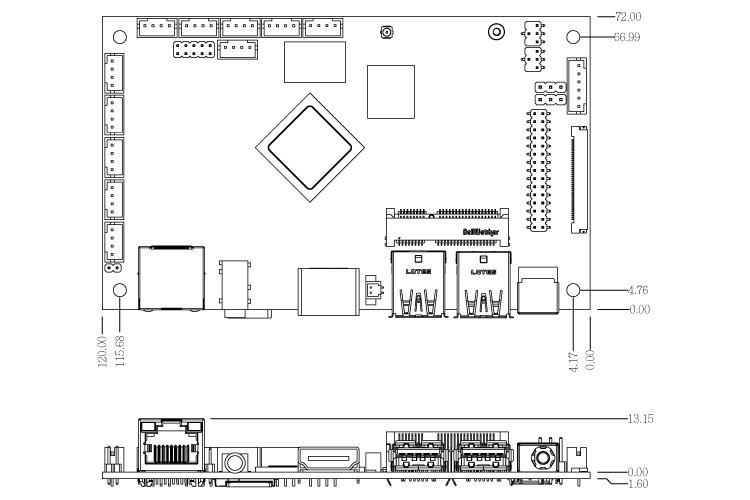

| DIMENSION (W X D) | 120.0 (W) x 72.0 (D) mm (4.7" x 2.8") |
| POWER | |
| POWER REQUIREMENT | DC-in 12V |
| POWER ON MODE | AT / ATX |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Mali-G52 MP2 GPU |
| LVDS | 1 x LVDS (Max. Resolution: 1920 x 1200 @60Hz) |
| eDP | 1 x eDP (Max Resolution: 2560 x 1600@60Hz) |
| HDMI® | 1 x HDMI® (Max Resolution: 4096 x 2304@60Hz) |
| MULTIPLE DISPLAY | Support 3 Displays |
| AUDIO | |
| CODEC | 2-channel HD Audio |
| COMBO | 1 x Combo Audio Jack for Line-Out / Mic-In |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x Realtek RTL8211F-CG GbE 1 x AW-CM358 (802.11 b/g/n 2.4GHz Wi-Fi + Bluetooth 4.2) |
| USB PORT | |
| USB | 4 x USB 2.0 2 x USB 3.0 (co-layout OTG) |
| SERIAL PORT | |
| COM | Internal Header for 2 x RS-232 |
| INTERNAL I/O | |
| GPIO | 4-Bit |
| SMBUS | Yes |
| ADDITIONAL | 1 x Debug 2 x UART (UART8/UART9, UART8 Co-Lay RS-485 ) 1 x Inverter |
| STORAGE | |
| MINI PCI-E | 1 x Full Size Mini-PCIe |
| eMMC | Onboard 32GB eMMC, Optional Up to 64GB |
| EXPANSION | |
| SIM | 1 x SIM Card Slot |
| OTHERs | |
| OTHER | 1 x Micro SD |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -10°C ~ 60°C (14°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, REACH (Option), China RoHS |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| — | OTH-ARK3-356843A1 M/B | 1 |
| PART NUMBER | OTH-ARK3-356843A1 |
| CPU | Rockchip® ARM Cortex-A55 (Quad-core, up to 2.0 GHz) |
| MEMORY | Onboard LPDDR4x 3200MT/s up to 4GB |
| SECURITY | Intel® PTT (fTPM) |
| POWER REQUIREMENT | DC-in 12V |
| GPU | Mali-G52 MP2 GPU |
| LVDS | 1 x LVDS |
| eDP | 1 x eDP |
| HDMI | 1 x HDMI® |
| MULTIPLE DISPLAY | Support 3 Displays |
| ETHERNET | 1 x GbE |
| ETHERNET | 1 x WiFi/BT |
| USB | 4 x USB 2.0 |
| USB | 2 x USB 3.0 |
| COM | 2 x RS-232 |
| MINI PCI-E | 1 x Full mini PCIe |
| eMMC | eMMC 32GB |
| SIM | 1 x SIM Card Slot |
| OTHER | 1 x Micro SD |
| OPERATING TEMPERATURE | -10°C ~ 60°C (14°F ~ 140°F) |
