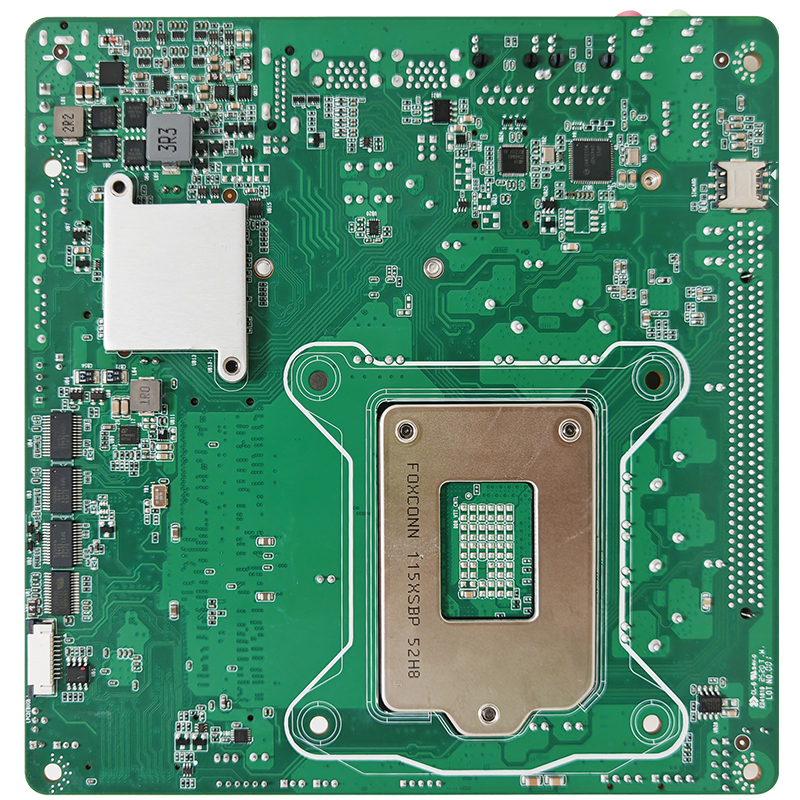

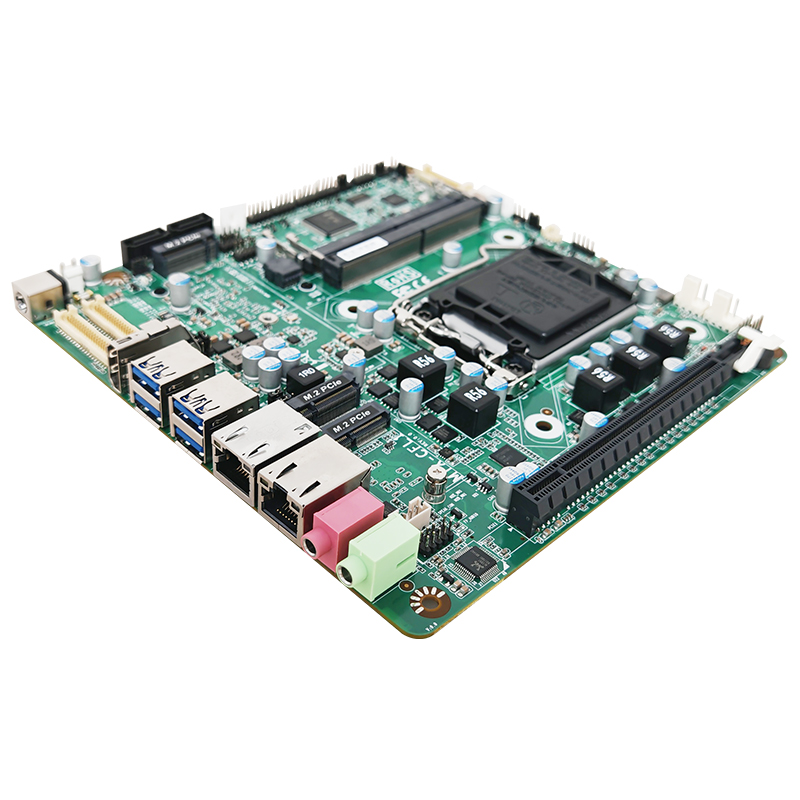

| SYSTEM | |
| MB FORM FACTOR | Mini-ITX |
| CPU | Intel® LGA1151 8/9th Gen Socket Processor (Formerly Coffee Lake-S, TDP 65W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® Coffee Lake H310 |
| MEMORY | 2 x DDR4 2666 MT/s Dual Channel SO-DIMM, up to 64GB |
| BIOS | AMI 128Mb Flash ROM |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) & TPM 2.0 (dTPM) |
| RTC BATTERY | Lithium Battery |

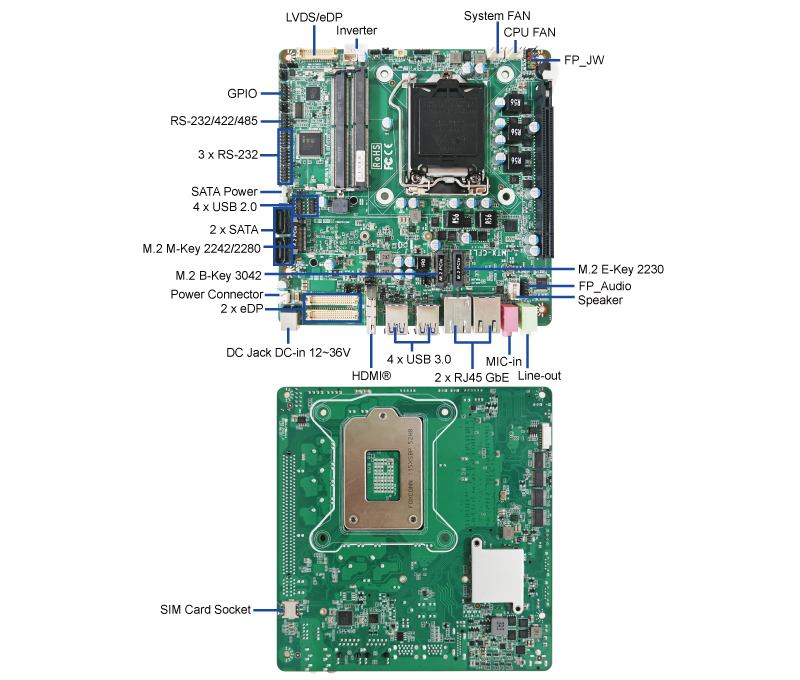

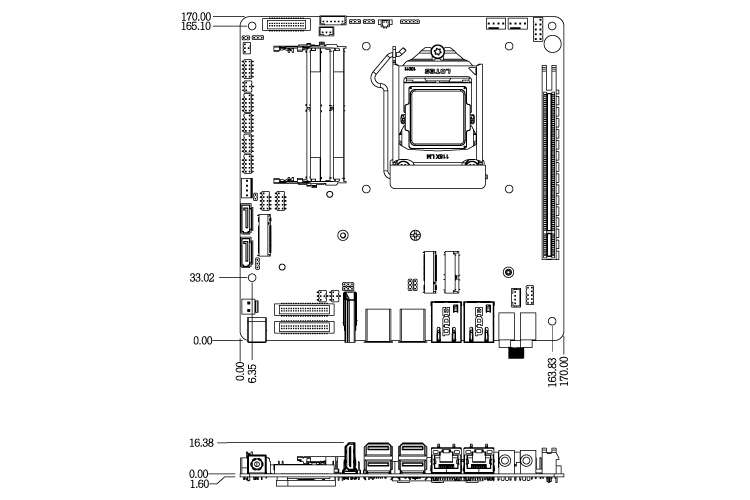

| DIMENSION (W X D) | 170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″) |
| OS SUPPORT | Windows® 11 (64bit), Windows® 10 (64bit), Linux, Windows® 7 (64bit) |
| POWER | |
| POWER REQUIREMENT | DC-in 12~36V |
| POWER ON MODE | AT / ATX |
| CONNECTOR | DC Jack Internal 2-pin Header |
| DISPLAY | |
| GPU | Intel® HD Graphics, shared Memory |
| LVDS | 1 x LVDS (Max. Resolution: 2560 x 1600 @60Hz, co-layout eDP) |
| eDP | 2 x eDP (Max Resolution: 2560 x 1600@60Hz) |
| HDMI® | 1 x HDMI® (Max.Resolution: 3840 x 2160@30Hz) |
| MULTIPLE DISPLAY | Support 2 Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| Line-out | 1 x Audio Jack for Line-out |
| MIC-in | 1 x Audio Jack for MIC-in |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I210-AT GbE 1 x RJ45 for Intel® I219-V GbE |
| USB PORT | |
| USB | Internal Header for 4 x USB 2.0 4 x USB 3.0 |
| SERIAL PORT | |
| COM | Internal Header for 1 x RS-232/422/485 Internal Header for 3 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit (5V) |
| SMBUS | Yes |
| I2C | Yes |
| FAN | 1 x CPU Fan Header (Smart Fan) 1 x System Fan Header (Smart Fan) |
| FRONT PANEL | Storage Activity LED, Power LED, Power On/Off, Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x AT Mode Selection 1 x Inverter (PH2.0) 1 x 4pin Speaker header 1 x Audio Header |
| STORAGE | |
| SATA | 2 x SATA III (6.0Gb/s) 1 x SATA Power Connector |
| EXPANSION | |
| PCIe | 1 x PCIe Gen 3 x16 |
| M.2 | 1 x E-Key 2230 (USB 2.0/PCIe x1) Support Wi-Fi/BT 1 x B-Key 3042 (PCIe x1/USB2.0) Support 4G Module 1 x M-Key 2242/2280 (PCIe 3.0 x4) Support NVMe |
| SIM | 1 x SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY | 10 ~ 90% @ 40°C, Non-condensing |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION | EU RoHS, China RoHS, REACH |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| — | MTX-CFL1-H31000A1/ MTX-CFL1-H31002A1 (TPM2.0) M/B | 1 |
| F04-MB-075-2F | I/O shield | 1 |
| G01-COM-H2M22-1F | COM Cable | 2 |
| G01-SATA3-BL-1F | SATA Cable | 1 |
| PART NUMBER | MTX-CFL1-H31000A1 | MTX-CFL1-H31002A1 |
| CPU | Intel® Socket LGA1151 CPU | Intel® Socket LGA1151 CPU |
| SECURITY | Intel® PTT (Integrated TPM) | TPM 2.0 (dTPM) |
