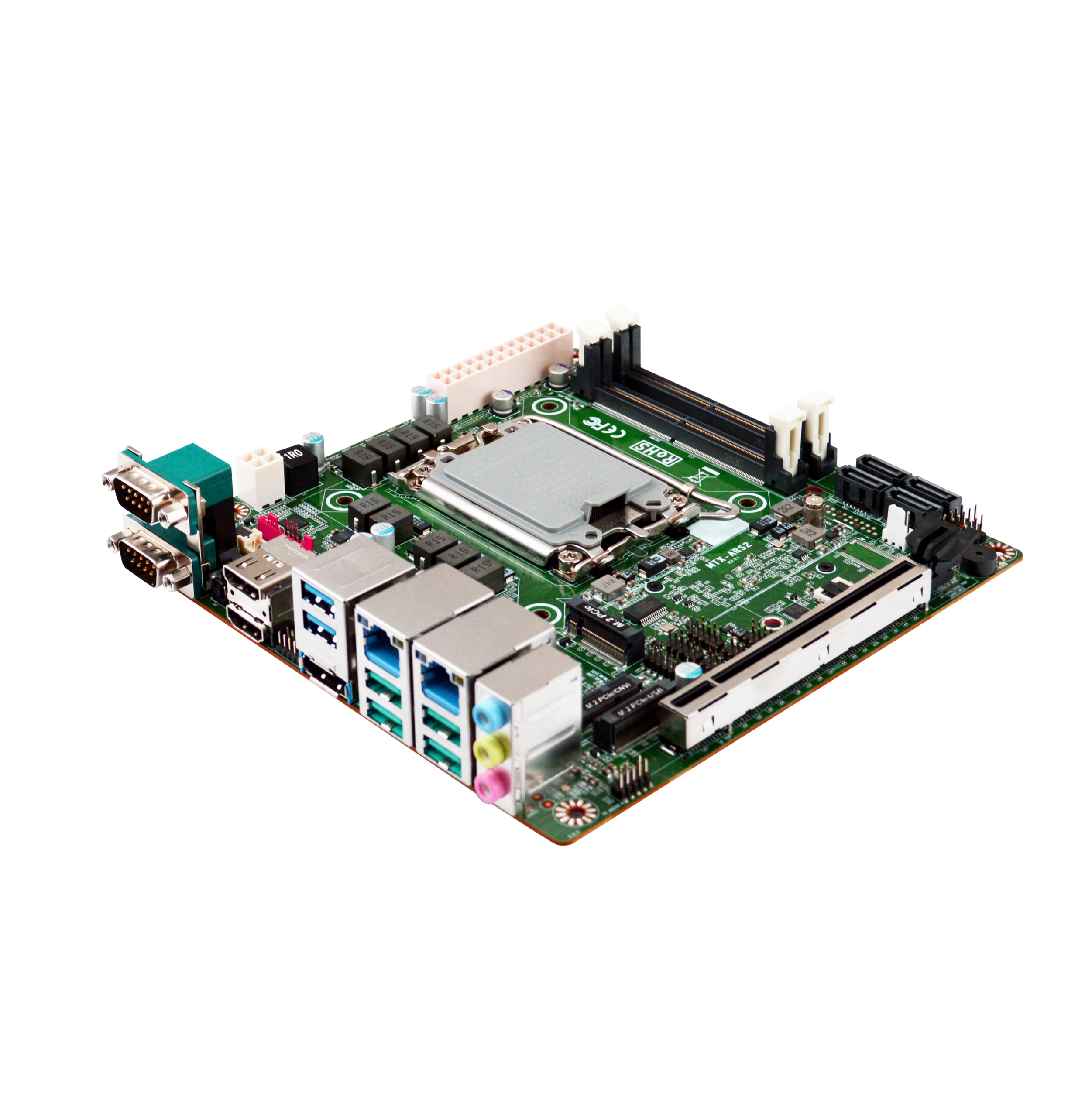

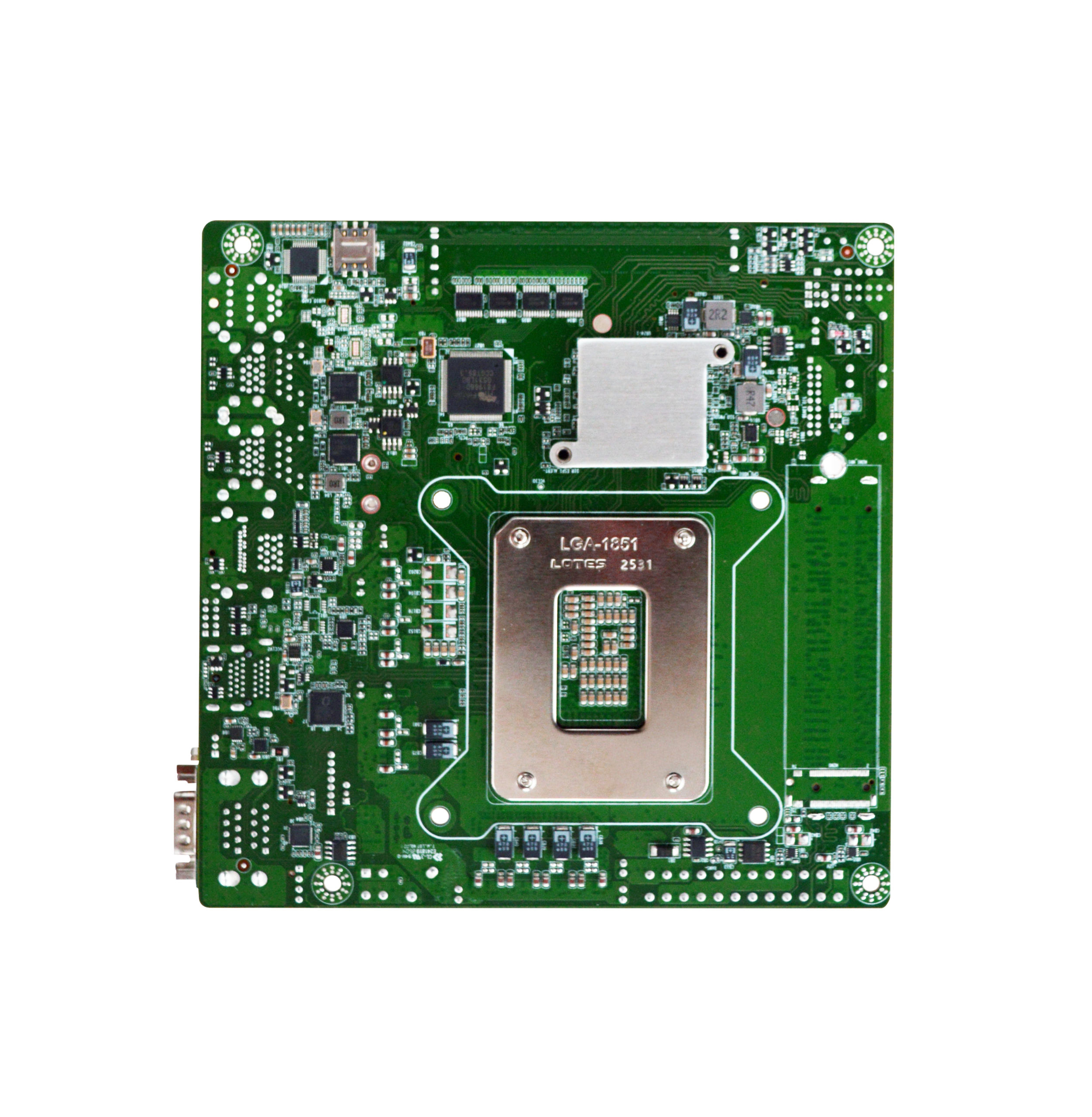

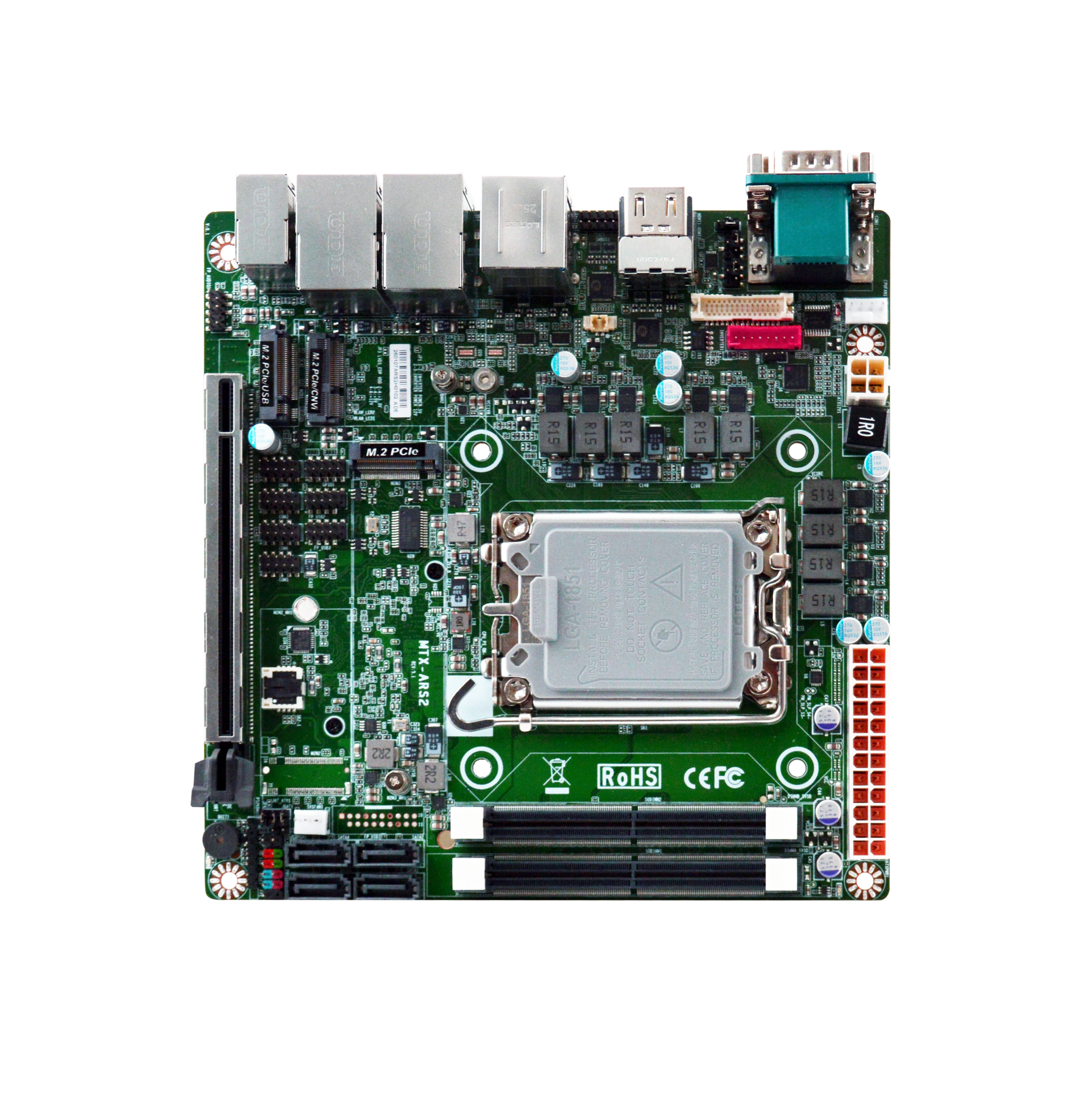

| SYSTEM | |
| MB FORM FACTOR | Mini-ITX |
| CPU | Intel® LGA1851 Core™ Ultra Socket Processor (Formerly Arrow Lake-S, TDP 65W) |
| CHIPSET | Intel® H810 |
| MEMORY | 2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 128GB |
| BIOS | AMI 256Mb Flash ROM |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (Optional) |

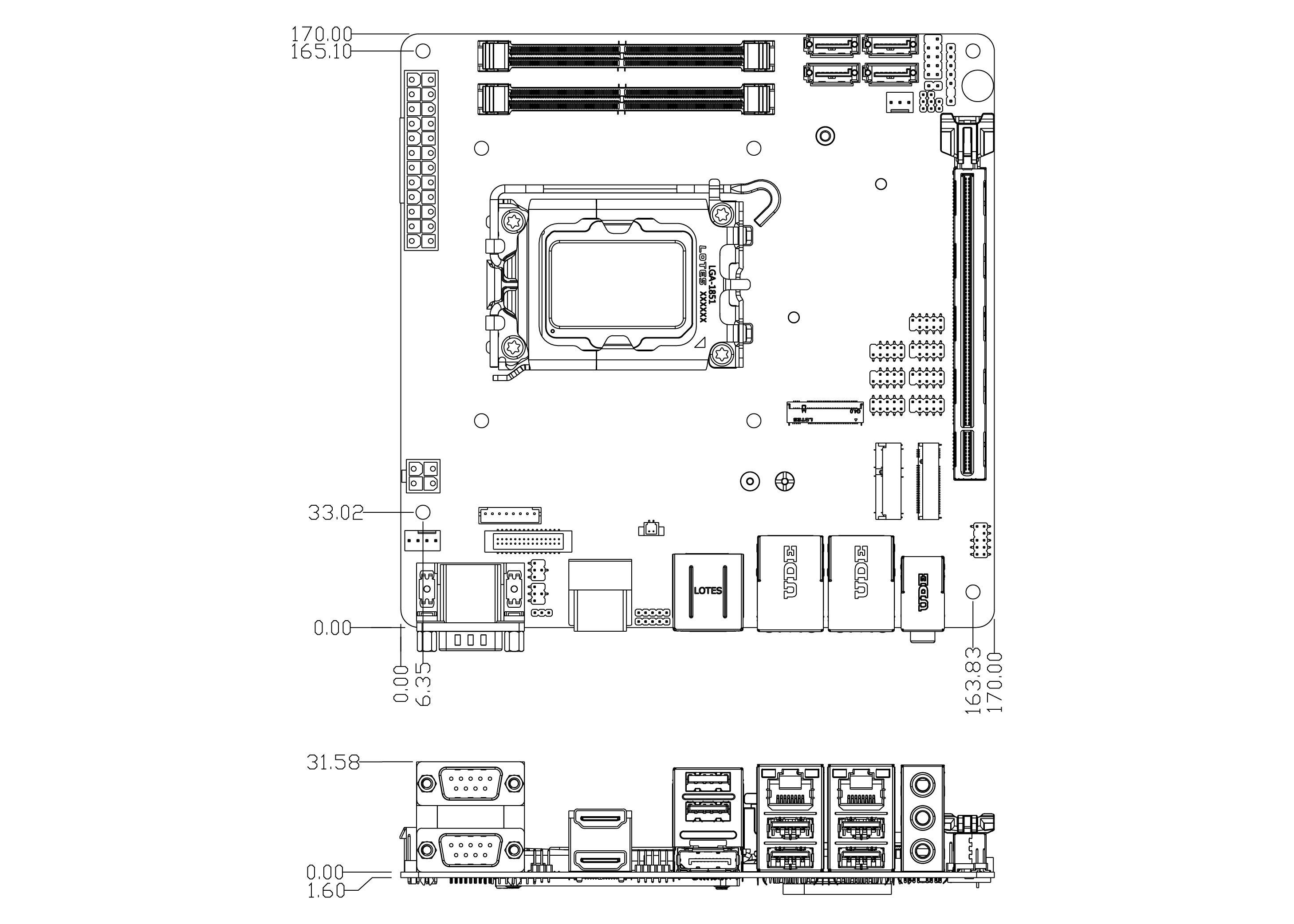

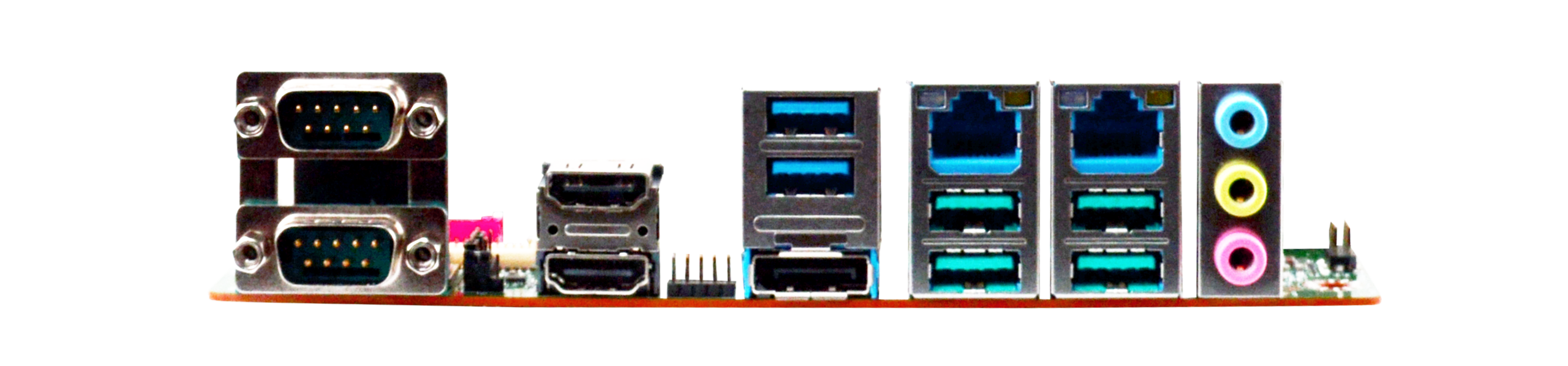

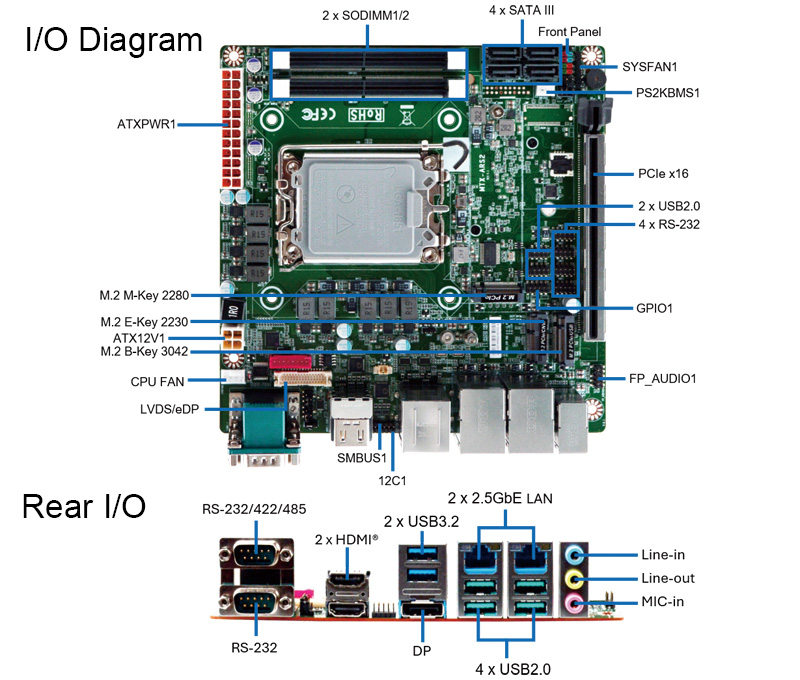

| DIMENSION (W X D) | 170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″) |
| OS SUPPORT | Windows® 11 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | ATX Power Supply |
| POWER ON MODE | AT / ATX |
| CONNECTOR | 24+4-pin ATX PWR |
| DISPLAY | |
| GPU | Intel® Graphics |
| LVDS | 1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP) |
| DP | 1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 3 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| Line-in | 1 x Audio Jack for Line-In |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| LAN | |
| ETHERNET | 2 x RJ45 for Intel® I226-V 2.5GbE |
| USB PORT | |
| USB | 2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) 4 x USB 2.0 Internal Header for 4 x USB 2.0 |
| SERIAL PORT | |
| COM | 1 x DB-9 for RS-232/422/485 1 x DB-9 for RS-232 Internal Header for 4 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| ADDITIONAL | 1 x Chassis Intrusion 1 x PS/2 1 x Audio Header |
| STORAGE | |
| SATA | 4 x SATA III |
| EXPANSION | |
| PCIe | 1 x PCIe Gen 5 x16 |
| M.2 | 1 x M-Key 2280 (PCIe Gen 4x4) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) support CNVio 1 x B-Key 3042 (PCIe Gen 4 x1/USB3.2 Gen 1/USB2.0 interface) support 4G/5G Module |
| SIM | 1 x SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, China RoHS, REACH, WEEE, Minerals Conflict-Free, PRO65 Declaration, CMRT Report |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| Part Number | Description | QTY per Board |
| MTX-ARS2-H810 MB | MTX-ARS2-H810 MB | 1 |
| G01-COM-H2M22-1F | COM Port Cable, 22cm, Pitch 2.0 | 1 |
| G01-SATA3-BL-1F | SATA Cable, 50cm | 1 |
| G01-PW4PS2S-322-1F | SATA Power Y cable, 5.0pitch for 32cm, 2.54pitch for 20cm | 1 |
| F04-MB-119-F | I/O Shield | 1 |
| F01-SP-A-BK-3F | Jumper | 2 |
| PART NUMBER | MTX-ARS2-H8100010 | MTX-ARS2-H8100210 |
| CPU | Intel® Arrow Lake-S Processor H810 | Intel® Arrow Lake-S Processor H810 |
| SECURITY | Intel® PTT (fTPM) | Intel® PTT (fTPM) & TPM 2.0 (dTPM) Default |
