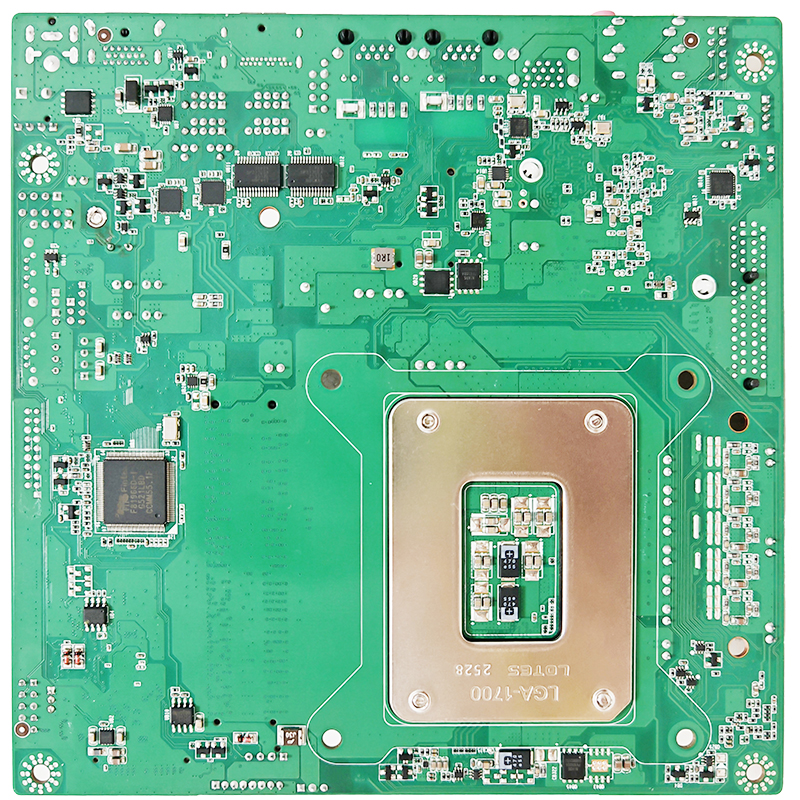

| SYSTEM | |

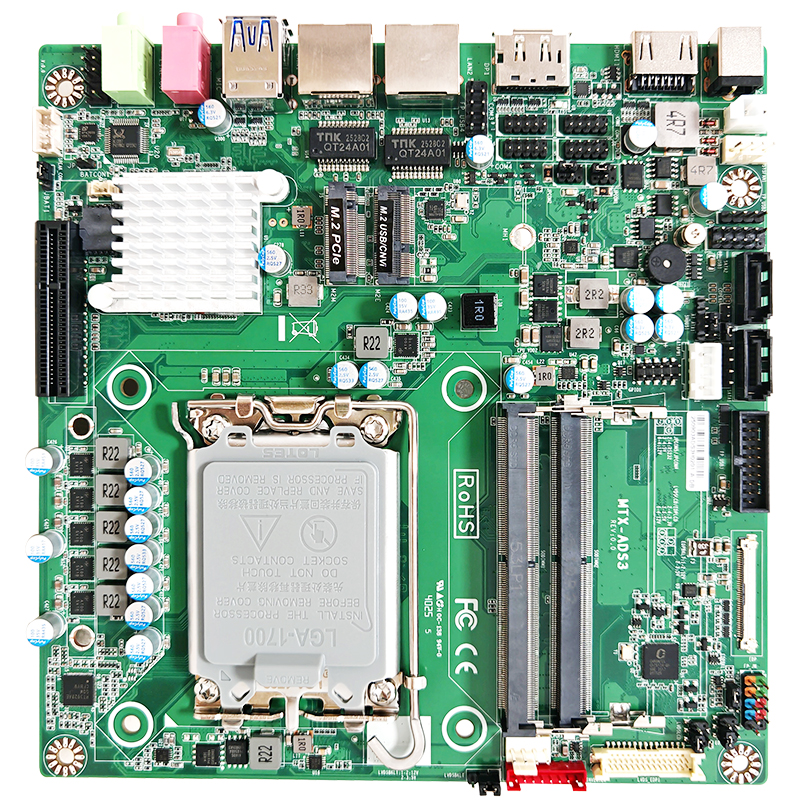

| MB FORM FACTOR | Mini-ITX |
| CPU | Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 65W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® H610 |
| MEMORY | 2 x DDR5 4800MT/s, Dual Channel SO-DIMM, up to 96GB |
| BIOS | AMI Flash ROM |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) & TPM 2.0 (dTPM) |
| RTC BATTERY | Lithium Battery |
| DIMENSION (W X D) | 170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″) |
| OS SUPPORT | Windows® 11 (64bit), Windows® 10 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~19V |
| POWER ON MODE | AT / ATX |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| LVDS | 1 × LVDS/eDP (Max. Resolution: LVDS: 2560 × 1600 @ 60 Hz, eDP: 1920 × 1080 @ 60 Hz) |
| eDP | 1 × eDP 1.4 (Max. Resolution: 5120 × 3200 @ 60 Hz) |
| DP | 1 x DP1.4 (Max Resolution: 7680 x 4320@60Hz) |
| HDMI® | 1 x HDMI® 2.0 (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 3 Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| Line-out | 1 x Audio Jack for Line-out |
| MIC-in | 1 x Audio Jack for MIC-in |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 2 x RJ45 for Realtek® RTL8111H GbE |
| USB PORT | |
| USB | Internal Header for 2 x USB 3.2 Internal Header for 5 x USB 2.0 2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) |
| SERIAL PORT | |
| COM | Internal Header for 2 x RS-232 Internal Header for 2 x RS-232/422/485 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| FAN | 1 x CPU Fan Header 1 x System Fan Header |
| FRONT PANEL | HDD Active LED, Power LED, Power On/Off, Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x FP_Audio 1 x Inverter 1 x 4pin Speaker header (for 3W Amplifier, PH2.0) |
| STORAGE | |
| SATA | 1 x SATA III 1 x SATA Power Connector |
| EXPANSION | |
| PCIe | 1 x PCIe Gen 4 x4 |
| M.2 | 1 x M-Key 2242/2280 (PCIe Gen 3 x4) 1 x E-Key 2230 (CNVioo/PCIe x1/USB2.0) support Wi-Fi/BT Module |
| OTHERs | |
| OTHER | 1 x AT mode 1 x SMBUS |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY | 10 ~ 90% @ 40°C, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, China RoHS, REACH (Option) |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| MTX-ADS3 Series | MTX-ADS3 Series M/B | 1 |

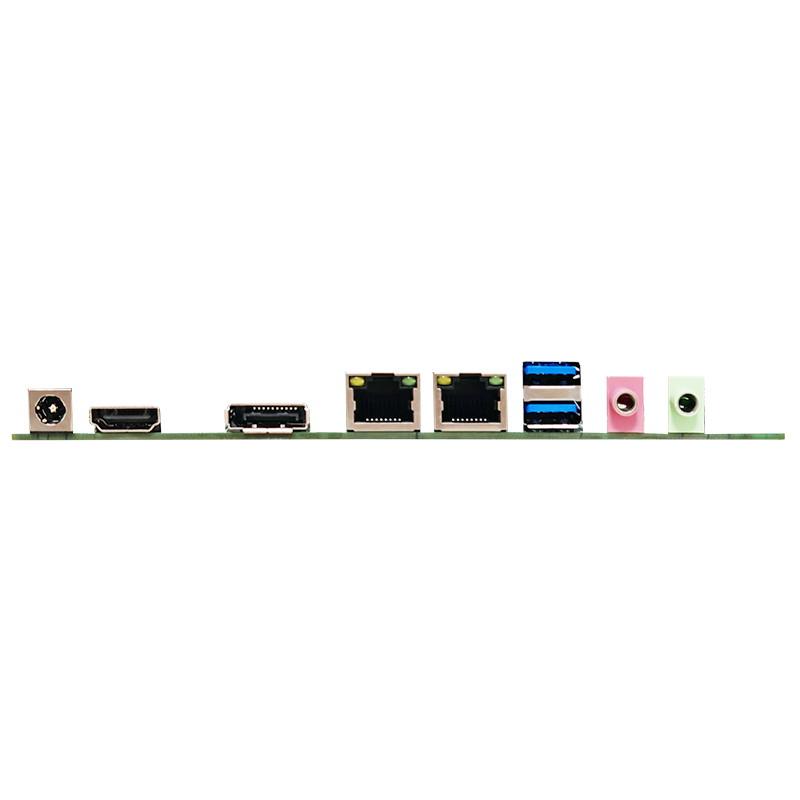

| F04-MB-092-F | LI25 DC Jack +HDMI +DP +RJ45/USB +RJ45 +USB3 +Line-out +MIC | 1 |
| G01-SATA3-BL-1F | CABLE for SATA3 50cm Blue w/LOCK | 1 |
| G01-COM-H2M22-1F | COM9 2 x 5P 1/2 K=9 L=220mm P=2.0 | 2 |
| PART NUMBER | MTX-ADS3-H61000A1 | MTX-ADS3-H61002A1 |
| CPU | Intel® Socket LGA1700 CPU | Intel® Socket LGA1700 CPU |
| SECURITY | Intel® PTT (fTPM) | TPM 2.0 (dTPM) |
