B382FMTU1

Fanless Embedded Box PC with Intel® Core™ Ultra 7 155U/ Core™ Ultra 5 125U

  • Powered with with Intel® Core™ Ultra 7 155U/ Core™ Ultra 5 125U
  • High-Speed Networking: 2 x 2.5GbE for fast and reliable connectivity
  • 4K Display: Supports HDMI 2.0b (4096 x 2160@60Hz) for high-resolution output
  • Flexible Storage: 1 x M.2 E-Key, 1 x B+M Key paired with 1 x Nano SIM Slot
  • Comprehensive I/O: 4 x RS485/422/232, 3 x USB 3.2 Gen 2, 4 x USB 2.0, 2 x RJ45
  • Versatile Mounting: Supports desktop, wall mount, and DIN rail installation

　Inquiry

Category:
SYSTEM
MB FORM FACTORPerformance
CPUOnboard Intel® Core™ Ultra 5 Processor 125U (Formerly Meteor Lake, TDP 15W)
Onboard Intel® Core™ Ultra 7 Processor 155U (Formerly Meteor Lake, TDP 15W)
For additional compatible CPUs, please contact regional sales
CHIPSETIntel® SoC
MEMORY2 x DDR5 5600MTs, Dual Channel SO-DIMM, up to 96GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~36V
90W Adapter: AC90~240V, DC19V/4.7A
POWER ON MODEAT / ATX (Default) Mode
DISPLAY
GPUIntel® Graphics
Type-C DP1 x Type-C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
DP1 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI1 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
AMPLIFIER3W
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
SYSTEM I/O

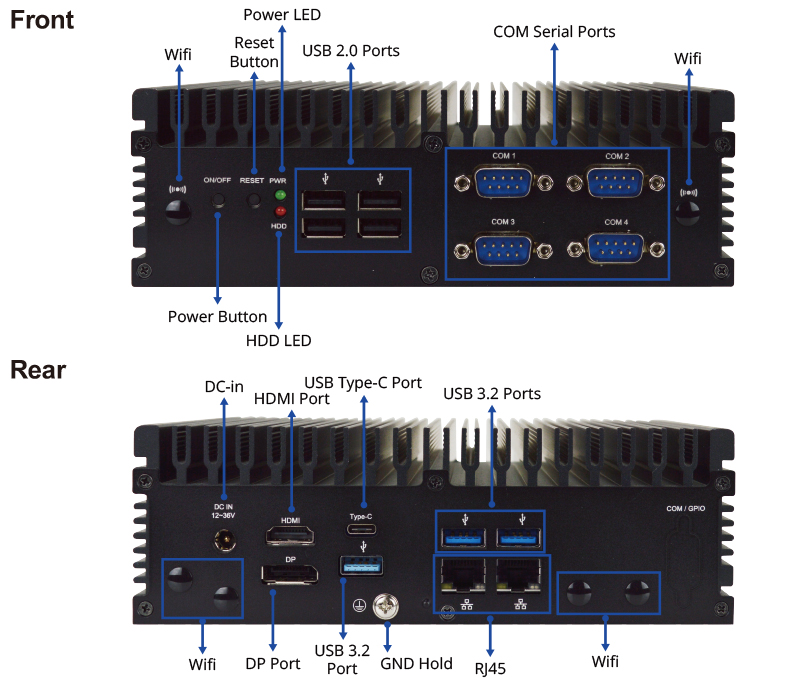

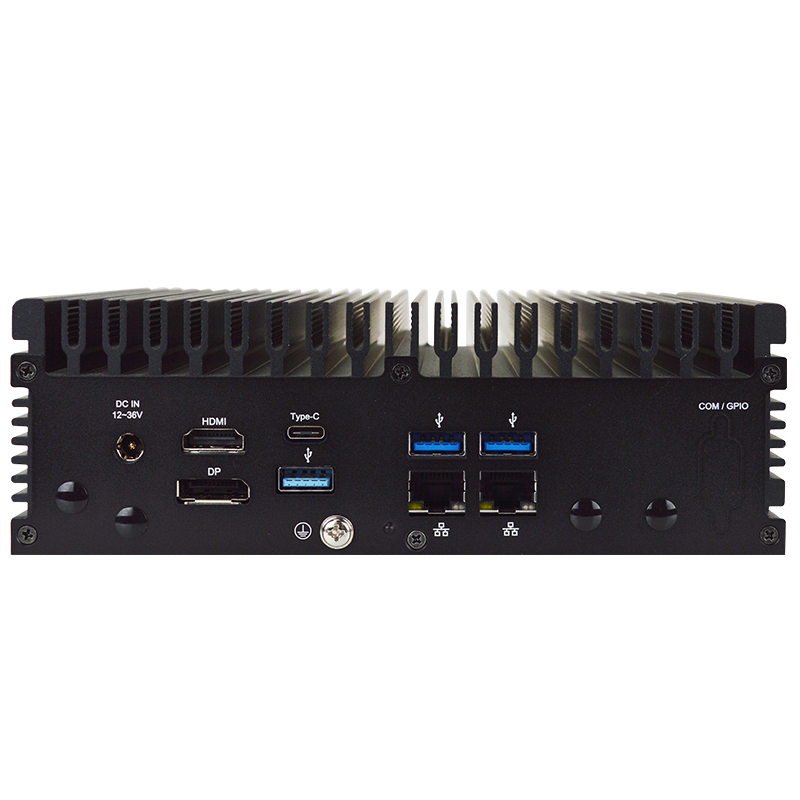

REAR PANEL I/O4 x Antenna Holes
1 x DC-in
1 x HDMI 2.0b
1 x DP
3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1 Type-C
2 x RJ45
1 x GND Hold

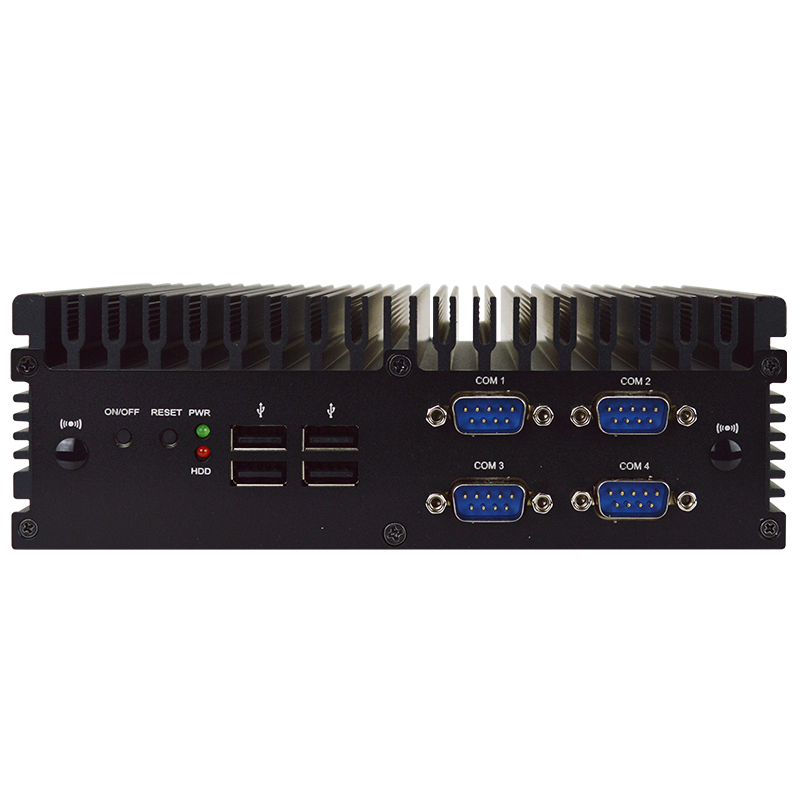

FRONT PANEL I/O1 x Power Button
1 x Reset Button
1 x Power LED
1 x HDD LED
4 x USB 2.0
4 x RS-232/422/485
2 x Antenna Holes
STORAGE
SATASATA Storage Available Upon Request
EXPANSION
M.21 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x2)
1 x M-Key 2242/2280 (PCIe 4.0 x4 / SATA III) Support NVMe
SIM1 x Nano SIM Card Slot
MECHANICAL
MOUNTINGDesktop, Wallmount, Din Rail

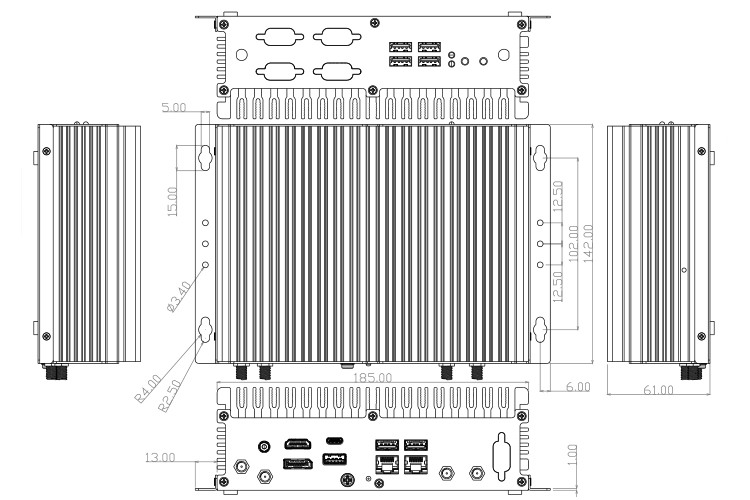

DIMENSIONS (W x D x H)185.0 (W) x 142.0 (D) x 61.0 (H) mm (7.28" x 5.6" x 2.4")
NET WEIGHT3.5 kg
CONSTRUCTIONAluminum Heatsink + Metal Chassis
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
LVD
PART NUMBERDESCRIPTIONQTY
B382FMTU1B382FMTU1 Barebone1
HCS370MWM01B-2-FWallmount Kit2
HCS3XXDINRAILPS-FBrackets DIN RAIL KITS2
L01AS066-FAdapter 19V/4.74A 90W1
LCSCHBJC3XX-FScrew Pack1
Change according to shipping areaPower Cord (Region Specific)1
PART NUMBERB382FMTU1-A111B382FMTU1-A211B382FMTU1-A311B382FMTU1-A411
CPUIntel® Core™ Ultra 5 125UIntel® Core™ Ultra 5 125UIntel® Core™ Ultra 7 155UIntel® Core™ Ultra 7 155U
MEMORY2 x DDR5 SO-DIMM, up to 96GB2 x DDR5 SO-DIMM, up to 96GB2 x DDR5 SO-DIMM, up to 96GB2 x DDR5 SO-DIMM, up to 96GB
SECURITYIntel® PTT (fTPM)TPM2.0Intel® PTT (fTPM)TPM2.0
POWER REQUIREMENTDC-in 12~36VDC-in 12~36VDC-in 12~36VDC-in 12~36V
GPUIntel® GraphicsIntel® GraphicsIntel® GraphicsIntel® Graphics
TYPE C DP1 x Type C DP1 x Type C DP1 x Type C DP1 x Type C DP
DP1 x DP1 x DP1 x DP1 x DP
HDMI1 x HDMI1 x HDMI1 x HDMI1 x HDMI
MULTIPLE DISPLAYSupport 3 DisplaysSupport 3 DisplaysSupport 3 DisplaysSupport 3 Displays
ETHERNET2 x 2.5GbE2 x 2.5GbE2 x 2.5GbE2 x 2.5GbE
I/O4 x WIFI ANT4 x WIFI ANT4 x WIFI ANT4 x WIFI ANT
I/O1 x DC Jack1 x DC Jack1 x DC Jack1 x DC Jack
I/O3 x USB 3.2 Gen 23 x USB 3.2 Gen 23 x USB 3.2 Gen 23 x USB 3.2 Gen 2
I/O1 x USB 3.2 Gen 1 Type C1 x USB 3.2 Gen 1 Type C1 x USB 3.2 Gen 1 Type C1 x USB 3.2 Gen 1 Type C
I/O2 x RJ452 x RJ452 x RJ452 x RJ45
I/O1 x GND Hold1 x GND Hold1 x GND Hold1 x GND Hold
I/O1 x Power Button1 x Power Button1 x Power Button1 x Power Button
I/O1 x Reset1 x Reset1 x Reset1 x Reset
I/O1 x Power LED1 x Power LED1 x Power LED1 x Power LED
I/O1 x HDD LED1 x HDD LED1 x HDD LED1 x HDD LED
I/O4 x USB 2.04 x USB 2.04 x USB 2.04 x USB 2.0
I/O4 x COM4 x COM4 x COM4 x COM
M.21 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/2280
M.21 x E-Key 22301 x E-Key 22301 x E-Key 22301 x E-Key 2230
M.21 x B-Key 3042/30521 x B-Key 3042/30521 x B-Key 3042/30521 x B-Key 3042/3052
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)-20°C ~ 60°C (-4°F ~ 140°F)-20°C ~ 60°C (-4°F ~ 140°F)-20°C ~ 60°C (-4°F ~ 140°F)

Note: All specifications are subject to change without notice.
