B420UADN1

Fanless Compact Box PC with Intel® N-series SoC Processors

Features

  • Powered by Intel® N97 SoC Processors (formerly Alder Lake)
  • High-Performance Memory: Supports DDR5 SO-DIMM
  • 4K Display:, Supports DP Alt Mode
  • Storage and Expansion: 1 x M.2 M-Key, and1 x M.2 E-Key
  • Enhanced Security: Intel® PTT with TPM 2.0 (Optional dTPM)
  • Dual 2.5GbE Ports for Reliable and High-Speed Networking Connections

　Inquiry

Category:
SYSTEM
MB FORM FACTORNUC
CPUOnboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
Intel® PTT (Integrated fTPM)
RTC BATTERYLithium Battery
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~19V
60W Adapter: AC90~240V, DC12V/5.0A
POWER ON MODEAT / ATX (Default) Mode
DISPLAY
GPUIntel® UHD Graphics
Type-C DP2 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
DP1 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI®1 x HDMI 2.0 (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Codec
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
SYSTEM I/O

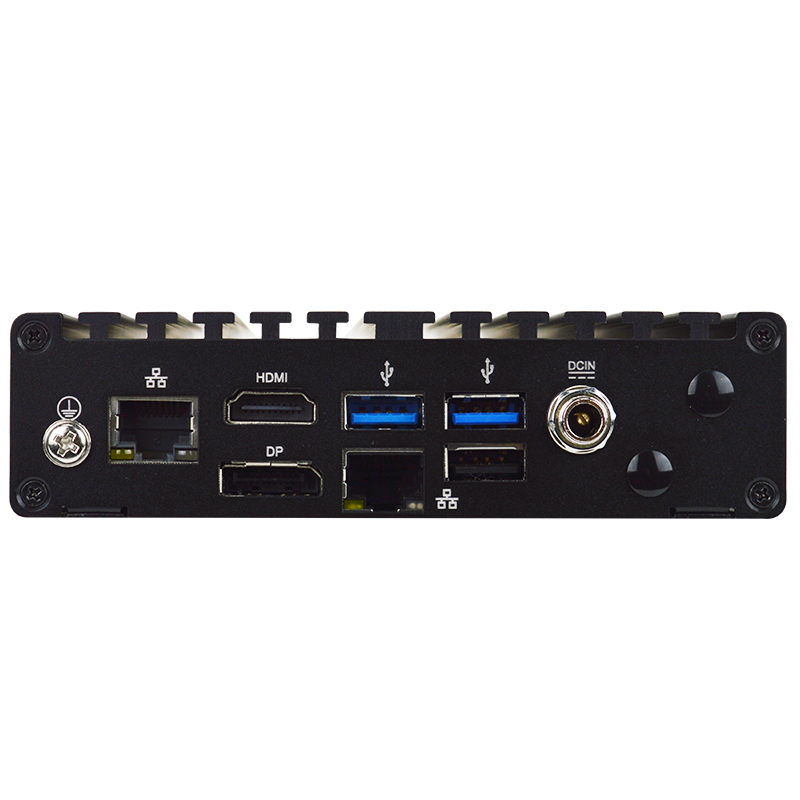

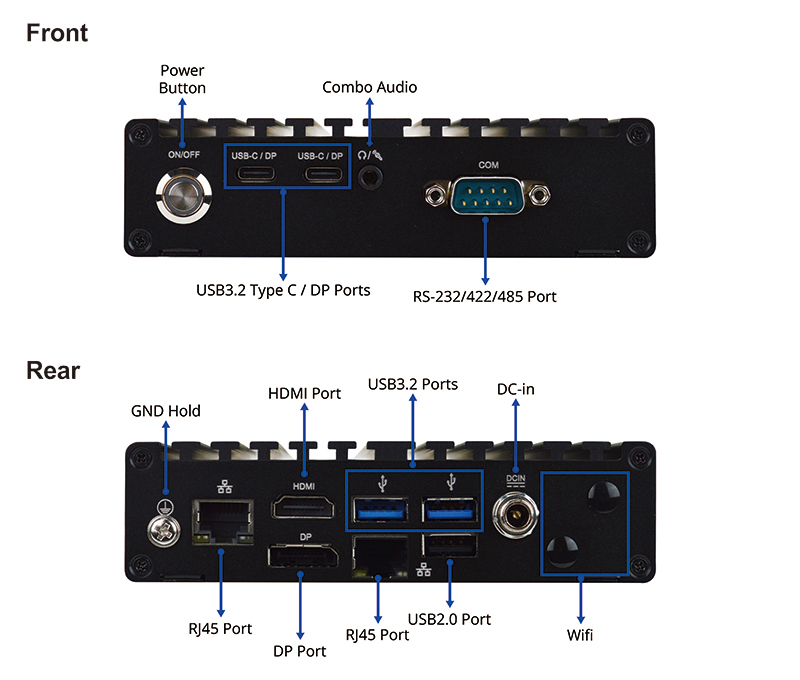

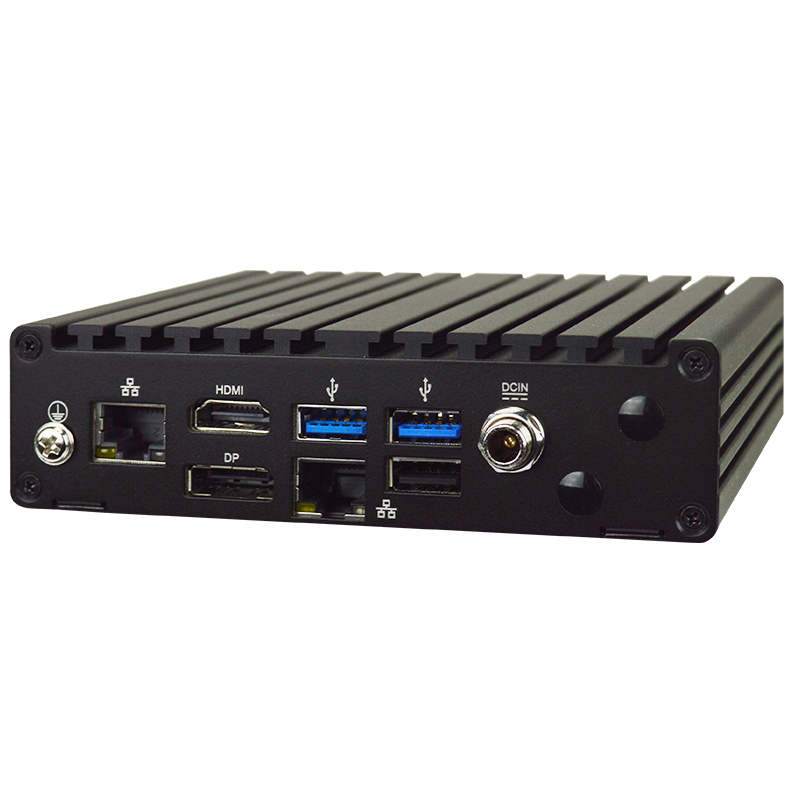

REAR PANEL I/O2 x RJ45
1 x HDMI 2.0
1 x DP 1.4
2 x USB 3.2 Gen 2
1 x DC-in (Lockable)
2 x WIFI Antenna Holes (Optional)
1 x GND Hold

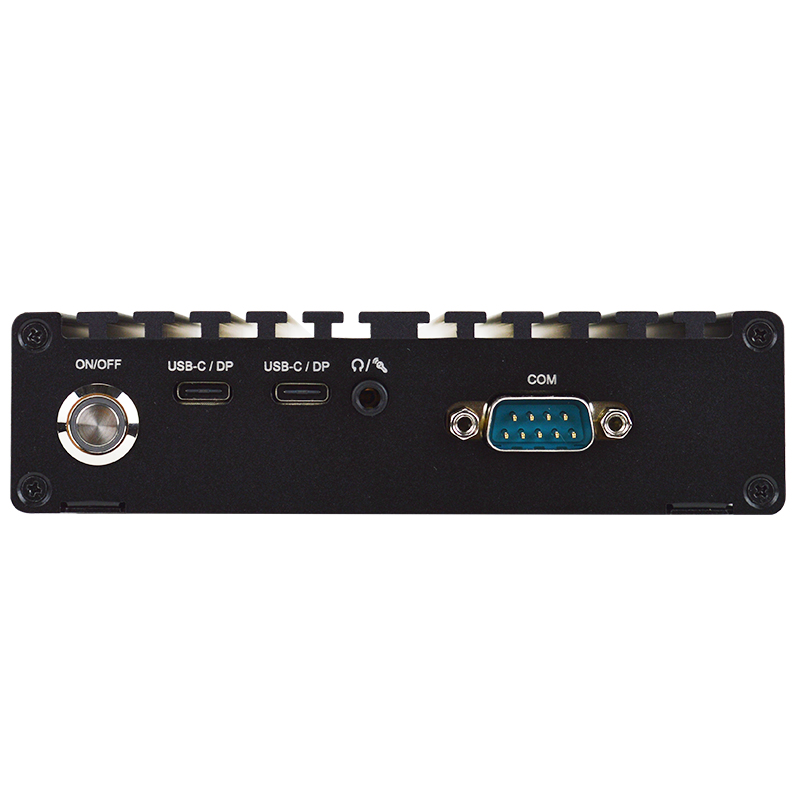

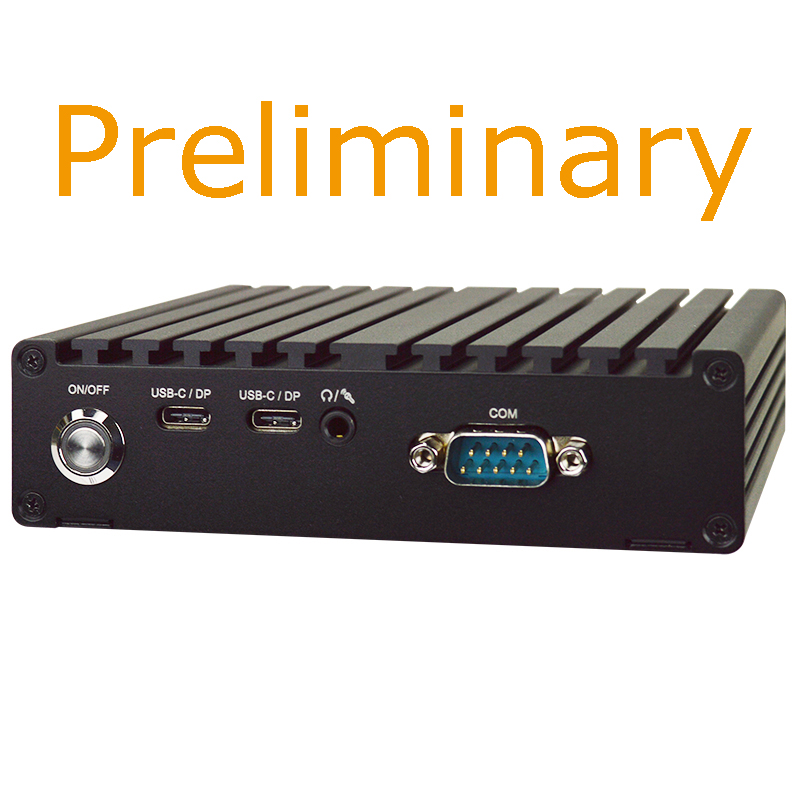

FRONT PANEL I/O1 x Power Button
2 x USB 3.2 Type C support DP ALT mode
1 x Combo Audio (Line out & Mic)
1 x RS-232/422/485
EXPANSION
M.21 x M-Key 2260/2280 (PCIe 3.0 x2/SATA III) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVio
MECHANICAL
MOUNTINGWall + VESA mount

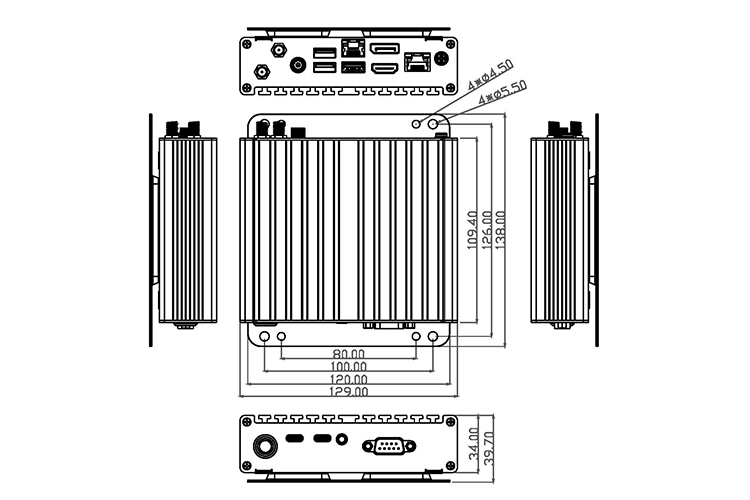

DIMENSIONS (W x D x H)129.0 (W) x 109.4 (D) x 34.0 (H) mm
NET WEIGHT0.56 KG
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONChina RoHS
CMRT Report
TSCA Declaration
WEEE
REACH
PART NUMBERDESCRIPTIONQTY
B420UADN1B420UADN1 Barebone1
HCS310MWM01B-2FWall+VESA mount Kit1
LCSCHBJC3XX-FScrew Pack1
L01AS052-FLockable Adapter 12V/5A 60W1
Change according to shipping areaPower Cord (Region Specific)1
PART NUMBERB420UADN1-A111B420UADN1-A211
CPUIntel® Processor N97Intel® Processor N97
MEMORY1 x DDR5 SO-DIMM, up to 32GB1 x DDR5 SO-DIMM, up to 32GB
SECURITYIntel® PTT (fTPM)TPM2.0
POWER REQUIREMENTDC-in 12~19VDC-in 12~19V
GPUIntel® UHD GraphicsIntel® UHD Graphics
TYPE C DP2 x Type C DP2 x Type C DP
DP1 x DP1 x DP
HDMI1 x HDMI1 x HDMI
MULTIPLE DISPLAYSupport 3 DisplaysSupport 3 Displays
ETHERNET2 x 2.5GbE2 x 2.5GbE
I/O2 x RJ452 x RJ45
I/O2 x USB 3.2 Gen 22 x USB 3.2 Gen 2
I/O1 x DC-in (Lockable)1 x DC-in (Lockable)
I/O2 x WIFI ANT2 x WIFI ANT
I/O1 x GND Hold1 x GND Hold
I/O1 x Power Button1 x Power Button
I/O2 x USB 3.2 Gen 2 Type C support DP2 x USB 3.2 Gen 2 Type C support DP
I/O1 x Audio (Line-out, MIC)1 x Audio (Line-out, MIC)
I/O1 x RS-232/422/4851 x RS-232/422/485
M.21 x M-Key 2260/22801 x M-Key 2260/2280
M.21 x E-Key 22301 x E-Key 2230
OPERATING TEMPERATURE-20°C ~ 50°C (-4°F ~ 122°F)-20°C ~ 50°C (-4°F ~ 122°F)

Note: All specifications are subject to change without notice.
