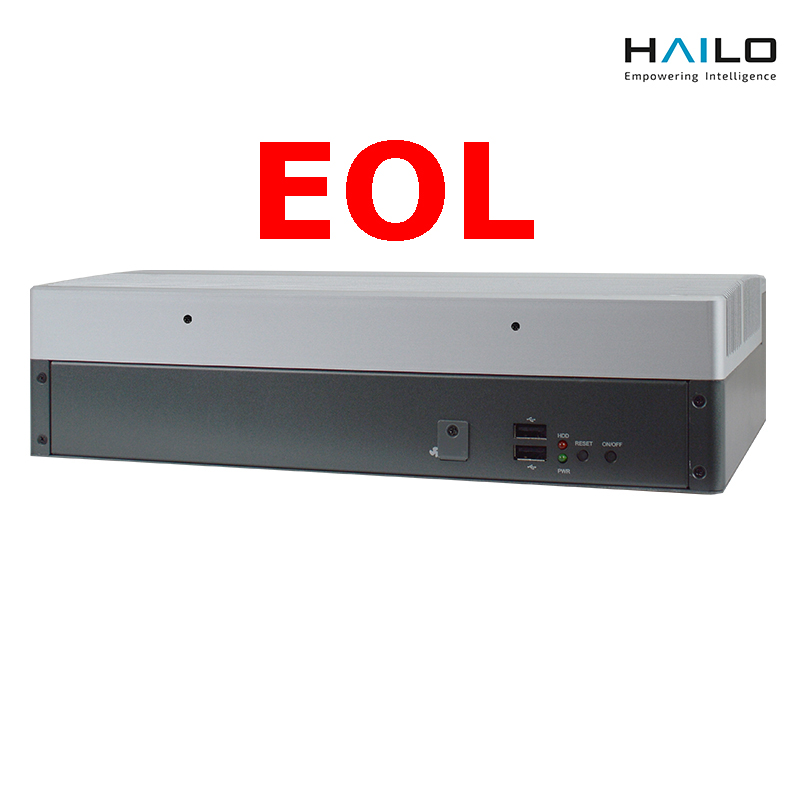

HB652I3H

Model

– HB652I3H-R680-AI2 (non-WiFi) & HB651I3HI-R680-AI2 (WiFi) / (1* HAILO-8™ Card / 52 TOPS)
– HB652I3H-R680-AI4 (non-WiFi) & HB651I3HI-R680-AI4 (WiFi) / (2* HAILO-8™ Card / 104 TOPS)

CPU/Chipset

– Intel® 13th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. TDP 65W)
– Intel R680E Chipset

MB Model

– MI3H-R6802 (TPM2.0)

BIOS

– AMI Flash ROM BIOS

Memory

– 2* DDR5 5600MHz Dual Channel SO-DIMM up to 64GB

Network

– 1* Intel i225-V 2.5GbE
– 1* Intel i225-LM 2.5GbE

Grapics

– Intel® HD Graphics, shared memory
– 1* HDMI

Audio

– HD audio: Realtek ALC897/ALC888S (with 3W Amp.)

Storage

– 2* M.2 M-key (2242/2280, PCIe Gen.4×4) support NVMe
– 1* 2.5” SATA Device

Expansion

– 1* M.2 E-key (2230, PCIe Gen.3×1/USB2.0) support CNVio
– 1* M.2 B-key (3042/3052, USB3.2/USB2.0/PCIe Gen.3×1)

AI Accelerator

– 1/2 Hailo-8 AI Card(by model)
Note: There are 2 HAILO-8 chips on each AI expansion card, Expansion through PCIe x 8 slot

Rear Panel I/O

– 8* USB3.2 (Gen.2)
– 2* LAN
– 1* HDMI
– 1* Audio jack (Line-out/MIC combo)
– 1* DC-in (3 PIN Industrial Connector)
– 6* COM (2* RS232/422/485,4* RS232)

Front Panel I/O

– 1* Power button
– 1* Reset button
– 1* Power LED
– 1* HDD LED
– 2* USB 2.0
– 1* EXT FAN module link

Internal Connector

– SIM Card Holder
– 1* GPIO

Power Source

– Adapter: AC 90~240V input/DC19V_120W output
– MB: DC12~36V input

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Dimensions

– System: 306 (W)* 199 (D)* 79 (H) mm
– Box: 406 (W)* 359 (D)* 148 (H) mm
– Net Weight: 5.5 KG
– Gross Weight: 6.5 K

Temperature

– Operating Temperature: -20 ~ 50° C
(Under the condition of using M.2 interface SSD)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)

OS Support

– Windows 11, Linux

Warranty

– 2 Year limited warranty

  Part Number

  Description

 HB652I3H Series

 HCS650MWM01B-F

 2* WALL MOUNT KITS

 1* Adapter DC19V/120W

 Change according to shipping area

 1* Power cord

 LCSCHBFDXXX-F

 1* Screw Pack

 LCSCHBJC3XX-F

 1* Screw Pack

 J05-ANT-GX57245-F

 2* Antenna 2G4/5G 2.8dBi (WiFi only)
