| SYSTEM | |
| MB FORM FACTOR | Mini-ITX |
| CPU | Intel® LGA1200 10/11th Gen Socket Processor (Formerly Comet Lake-S, TDP 65W) |
| CHIPSET | Intel® H420E |
| MEMORY | 2 x DDR4 2933/2666MT/s SO-DIMM DRAM, up to 64GB |
| BIOS | AMI Flash ROM |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 10 (64bit) Windows® 11 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~28V |
| POWER ON MODE | AT / ATX |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| DP | 1 x DP1.4 (Max Resolution: 5120 x 3200@60Hz) |
| HDMI® | 2 x HDMI® 1.4 (Max Resolution: 4096 x 2160@30Hz) |
| MULTIPLE DISPLAY | Support 2 Displays |
| AUDIO | |
| CODEC | Realtek ALC888S |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I219-LM GbE |
| SYSTEM I/O | |

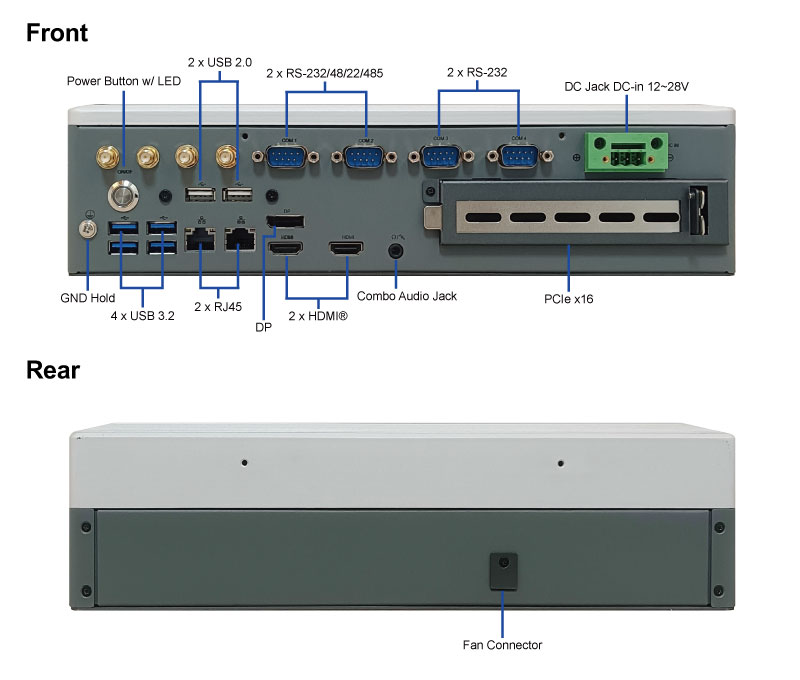

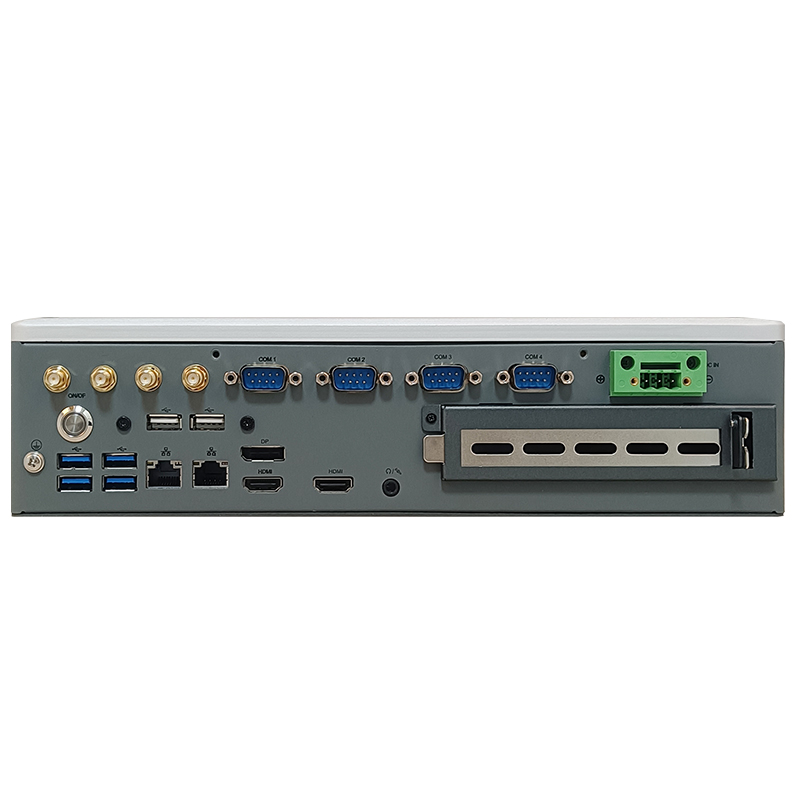

| REAR PANEL I/O | 2 x RS-232/422/485 2 x RS-232 1 x Audio ( Line out, MIC Combo) 1 x Phoenix Terminal Block 12~28V DC input 4 x Antenna Holes 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Power Button 1 x Power LED |

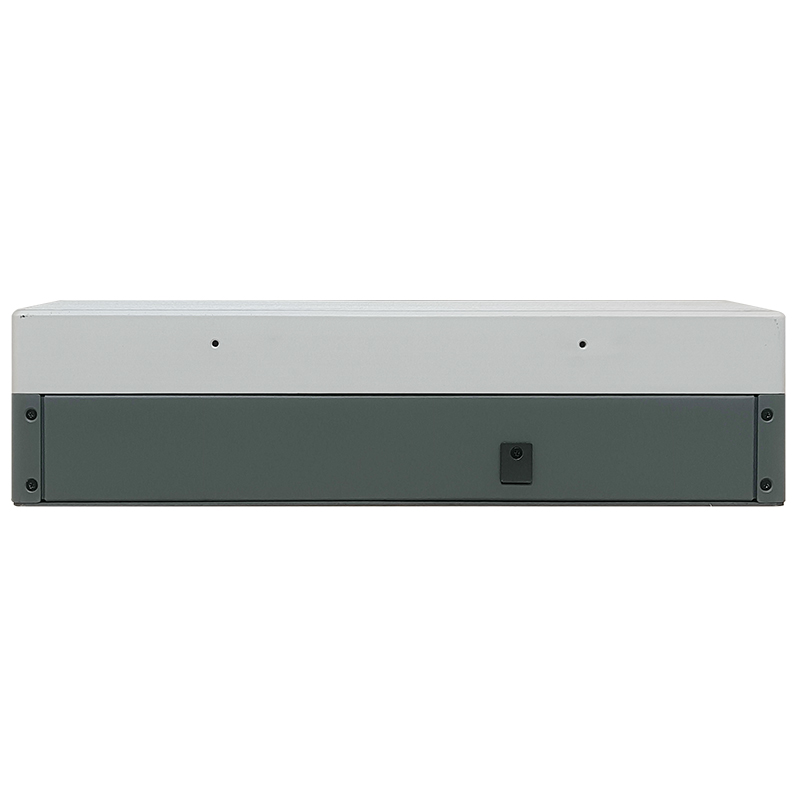

| FRONT PANEL I/O | 1 x FAN link con |
| STORAGE | |
| SATA | 1 x 2.5” SATA Device (support 2.5” HDD with a height ≤ 10mm) |
| EXPANSION | |
| M.2 | 1 x M-Key 2280 (PCIe x4) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe x1) support CNVioo 1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module |
| PCIe | 1 x PCIe x16 PCI Express x16 is recommended for IO control card expansion. High-power cards in a fanless case may affect performance, so they aren't recommended |
| SIM | 1 x SIM Card Slot |
| MECHANICAL | |

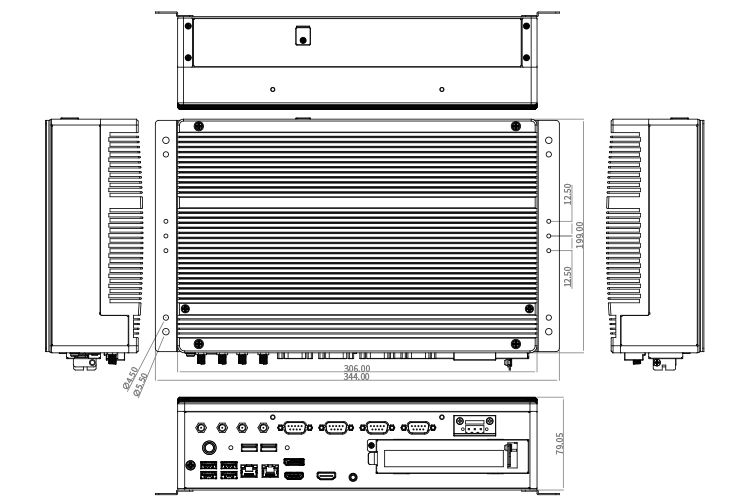

| DIMENSIONS (W x D x H) | 306.0 (W) x 199.0 (D) x 79.0 (H) mm |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -10°C ~ 60°C (14°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY | 10 ~ 95% @ 40°C, Non-condensing |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION | ErP EU RoHS |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| - | HB651I21-H420-B | 1 |
| - | Power cord | 1 |
| L01AS056-F | Adapter 19V/6.32A 120W FSP120-ABBN5 Phoenix Terminals | 1 |
| HCS650MWM01B-F | WALL MOUNT KITS | 1 |
| LCSCHBFDXXX-F | Screw Pack | 1 |
| LCSCHBJC3XX-F | Screw Pack | 1 |
| HCFAN65X-DC1225 | DC1225 FAN Expansion module (Option) | 1 |
| PART NUMBER | HB651I21-H420-B |
| CPU | Intel® Socket LGA1200 CPU |
| MEMORY | 2 x DDR4 SO-DIMM, up to 64GB |
| SECURITY | Intel® PTT (fTPM) |
| POWER REQUIREMENT | DC-in 12~28V |
| GPU | Intel® UHD Graphics |
| DP | 1 x DP |
| HDMI | 2 x HDMI® |
| MULTIPLE DISPLAY | Support 2 Displays |
| ETHERNET | 1 x 2.5GbE |
| ETHERNET | 1 x GbE |
| I/O | 4 x USB 3.2 Gen 1 |
| I/O | 2 x USB 2.0 |
| I/O | 2 x RS-232/422/485 |
| I/O | 2 x RS-232 |
| I/O | 1 x DC Jack |
| I/O | 4 x WIFI ANT |
| I/O | 1 x FAN link con |
| I/O | 1 x Audio (Line-out, MIC Combo) |
| I/O | 1 x Power LED |
| I/O | 1 x Power button |
| SATA | 1 x 2.5” SATA III Bay |
| M.2 | 1 x M-Key 2280 |
| M.2 | 1 x E-Key 2230 |
| M.2 | 1 x B-Key 3042/3052 |
| OPERATING TEMPERATURE | -10°C ~ 60°C (14°F ~ 140°F) |
