| SYSTEM | |
| MB FORM FACTOR | 3.5" |
| CPU | Onboard Intel Atom® x7433RE Processor (Formerly Amston Lake, TDP 9W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 48GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (dTPM, Optional) |
| RTC BATTERY | Lithium Battery |

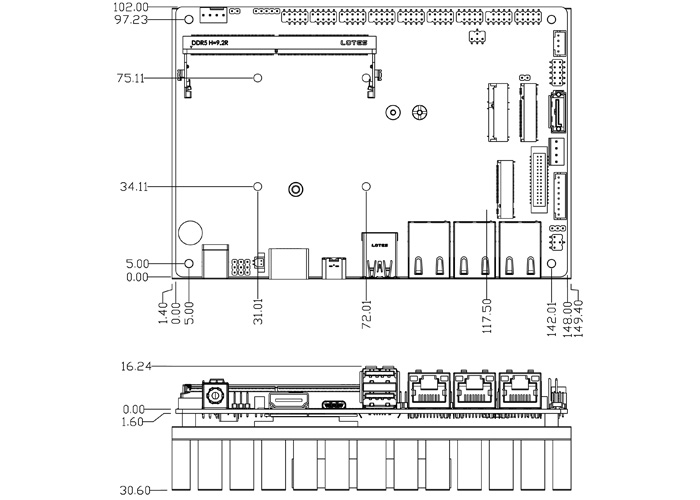

| DIMENSION (W X D) | 148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″) |
| OS SUPPORT | Windows® 11 (64bit), Windows® 10 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 9~36V |
| POWER ON MODE | AT / ATX (Default) Mode |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| LVDS | 1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP) |
| Type-C DP | 1 x Type-C DP1.4 (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 1 x HDMI® 1.4b (Max Resolution: 3840 x 2160@30Hz) |
| MULTIPLE DISPLAY | Support 3 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| COMBO | 1 x Internal Header(Line-in/Line-out/Mic-in) |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 3 x RJ45 for Intel® I226-IT 2.5GbE |
| USB PORT | |
| USB | 2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) 1 x USB 3.2 Gen 2x1 Type-C (10Gbps) Support DP ALT Mode Internal Header for 2 x USB 2.0 |
| SERIAL PORT | |
| COM | Internal Header for 1 x RS-232/422/485 Internal Header for 5 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| FAN | 1 x CPU Fan Header |
| FRONT PANEL | HDD Active LED, Power LED, Power On/Off, Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x AT/ATX Mode Selection |
| STORAGE | |
| SATA | 1 x SATA III 1 x SATA Power Connector |
| eMMC | eMMC 128GB (By Request) |
| EXPANSION | |
| M.2 | 1 x B-Key 3042/3052 (USB 3.2) for 4G/5G/LTE 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi 1 x M-Key 2280 (PCIe x2) |
| SIM | 1 x Nano SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| Part Number | Description | QTY per Board |
| F35-ASL2 | F35-ASL2 MB | 1 |
| F01-SP-A-BK-3F | Jumper | 2 |
| G01-COM-H2M22-1F | COM Cable | 2 |
| G01-SATA3-BL-2F | SATA Cable | 1 |
| G01-PW4PS2S-322-3F | SATA Power Cable | 1 |

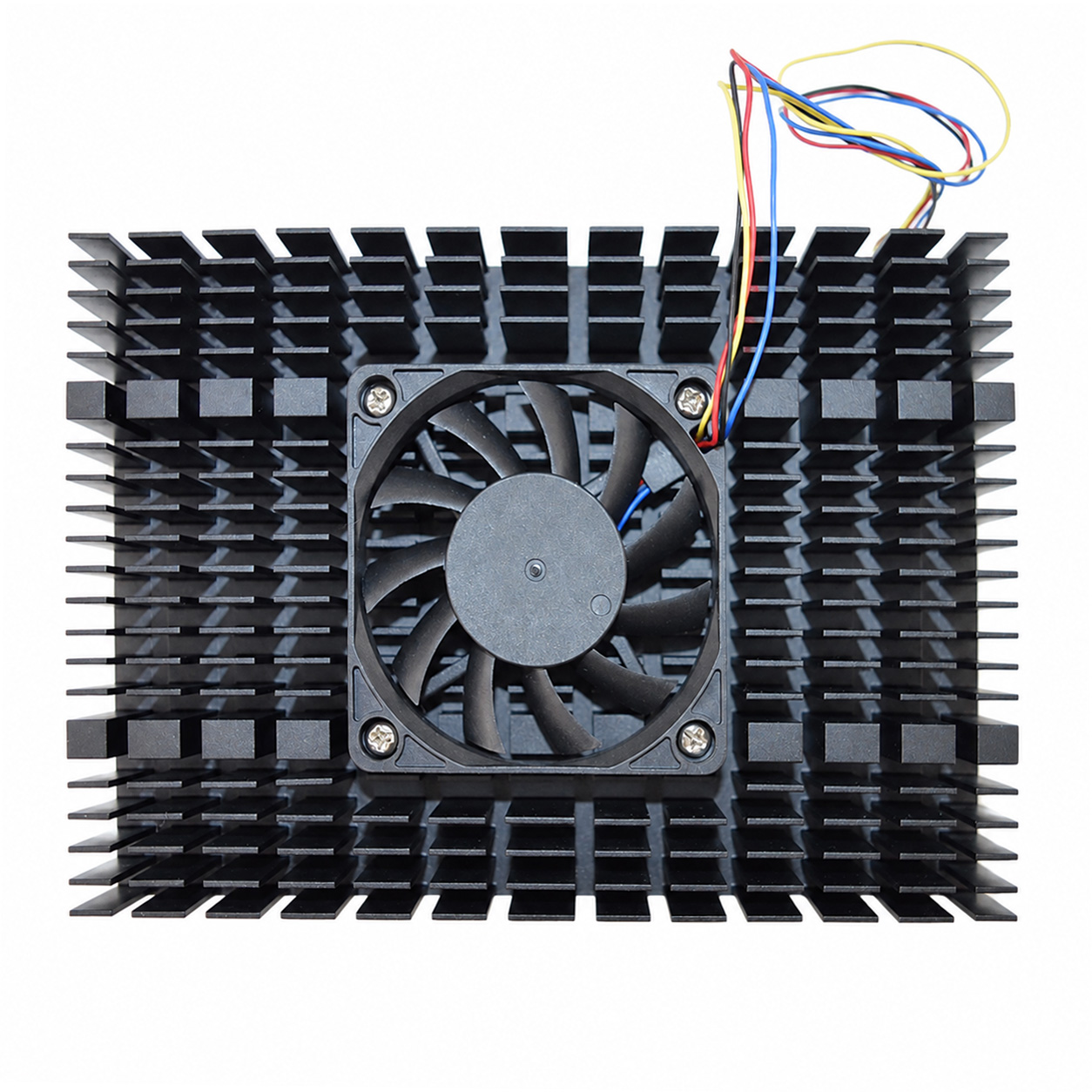

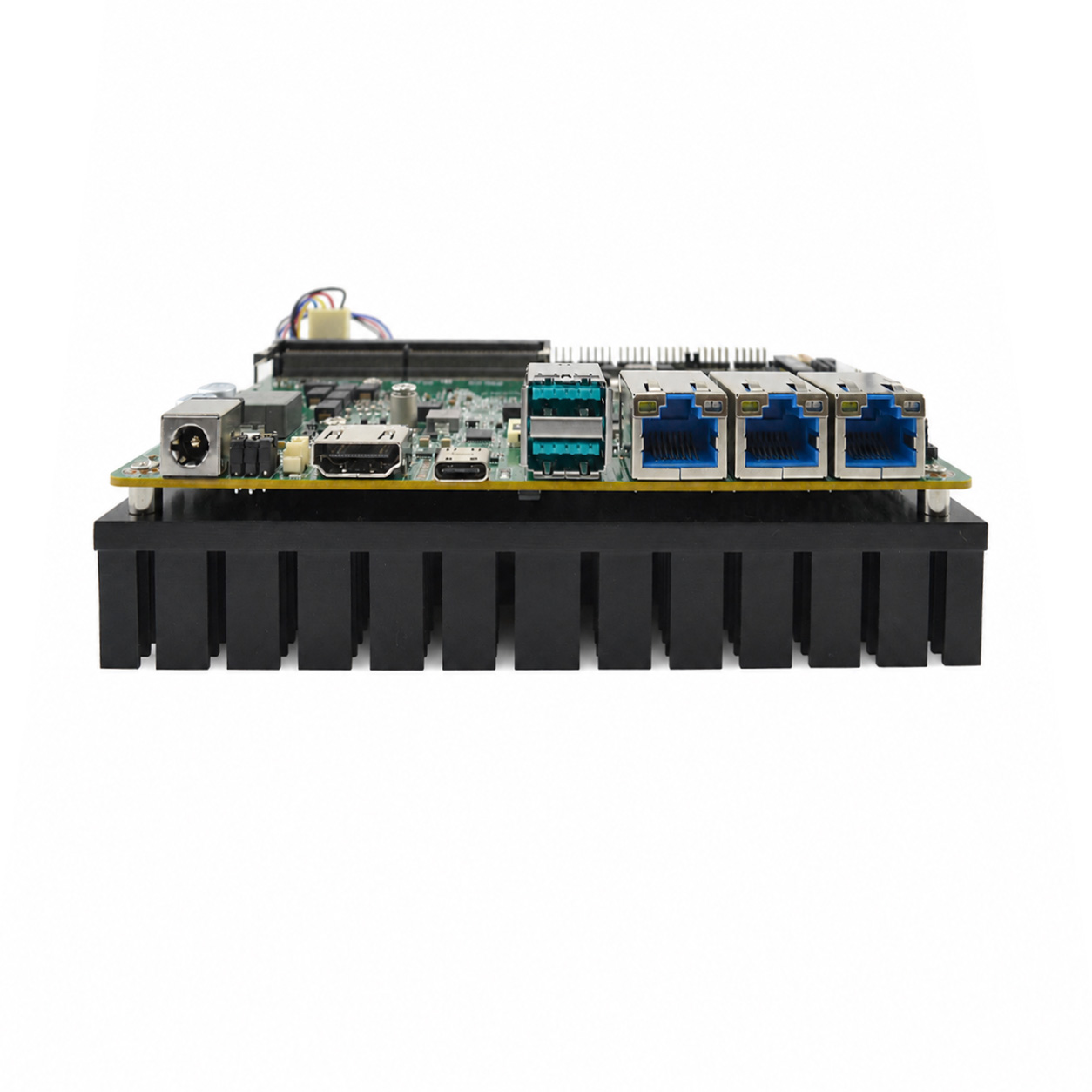

| F05-JF35-04-F | Heatsink(assembled) | 1 |
| PART NUMBER | F35-ASL2-74330010 | F35-ASL2-74330210 |
| CPU | Intel® Atom® x7433RE Processor | Intel® Atom® x7433RE Processor |
| SECURITY | Intel® PTT (fTPM) | TPM 2.0 (dTPM) |
