| SYSTEM | |
| MB FORM FACTOR | 3.5" |
| CPU | Onboard Intel® Core™ Ultra 5 Processor 225U (Formerly Arrow Lake-U, TDP 15W) Onboard Intel® Core™ Ultra 7 Processor 255U (Formerly Arrow Lake-U, TDP 15W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® SoC |
| MEMORY | 2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 128GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (dTPM, Optional) |
| RTC BATTERY | Lithium Battery |

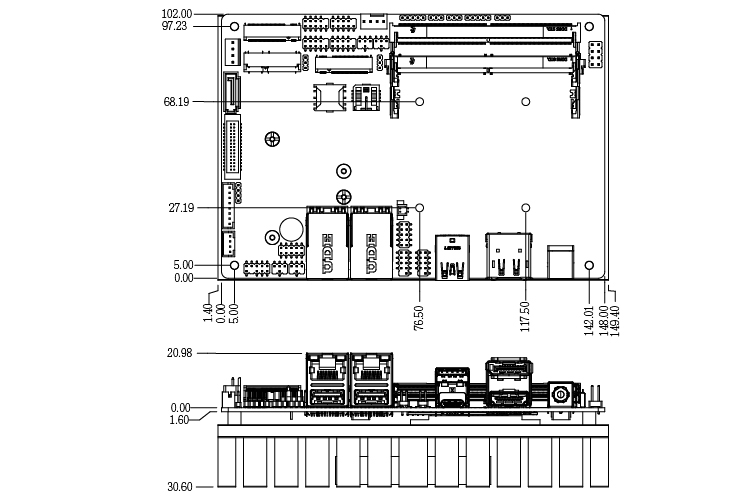

| DIMENSION (W X D) | 148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″) |
| OS SUPPORT | Windows® 11 (64bit), Windows® 10 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~36V |
| POWER ON MODE | AT / ATX (Default) Mode |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Intel® Graphics |
| LVDS | 1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP) |
| Type-C DP | 1 x Type-C DP 1.4 (Max Resolution: 3840 x 2160@60Hz) |
| DP | 1 x DP1.4 (Max Resolution: 3840 x 2160@60Hz) |
| HDMI® | 1 x HDMI 2.0b (Max Resolution: 3840 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| COMBO | 1 x Internal Header |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE |
| USB PORT | |
| USB | 1 x USB 3.2 Gen 2x2 Type-C (20Gbps) 3 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 4 x USB 2.0 |
| SERIAL PORT | |
| COM | Internal Header for 4 x RS-232/422/485 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| I2C | Yes |
| FAN | 1 x 4-pin Connector for CPU Fan (PWM Mode) |
| FRONT PANEL | HDD Active LED, Power LED, Power On/Off, Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x AT/ATX Mode Selection |
| STORAGE | |
| SATA | 1 x SATA III 1 x SATA Power Connector |
| RAID | RAID 0/1 |
| EXPANSION | |
| M.2 | 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVio 1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x2) 1 x M-Key 2242/2280 (PCIe 4.0 x4 / SATA III) Support NVMe |
| SIM | 1 x Nano SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| F35-ARU1 | F35-ARU1 | 1 |
| G01-COM-H2M20-1F | COM Cable | 2 |
| G01-SATA3-BL-1F | SATA Cable | 1 |
| G01-PW4PS2S-322-1F | SATA Power Cable | 1 |
| F05-JF35-04-F | Heat Sink(assembled) | 1 |
| F07-FN606010-F | FAN(assembled) | 1 |
| PART NUMBER | DESCRIPTION | QTY |
| G01-COM-H2M20-1F | COM cable | 1 |
| PART NUMBER | F35-ARU1-225U0020 | F35-ARU1-225U0220 | F35-ARU1-255U0020 | F35-ARU1-255U0220 |
| CPU | Intel® Core™ Ultra 5 225U | Intel® Core™ Ultra 5 225U | Intel® Core™ Ultra 7 255U | Intel® Core™ Ultra 7 255U |
| SECURITY | Intel® PTT (fTPM) | TPM 2.0 (dTPM) | Intel® PTT (fTPM) | TPM 2.0 (dTPM) |
