| SYSTEM | |
| MB FORM FACTOR | Compact |
| CPU | Onboard Intel Atom® x7433RE Processor (Formerly Amston Lake, TDP 9W) Onboard Intel Atom® x7425E Processor (Formerly Alder Lake-N, TDP 12W) For additional compatible CPUs, please contact regional sales |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) Default & TPM 2.0 (dTPM) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 11 (64bit), Windows® 10 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~28V 60W Adapter: AC100~240V, DC12V/5.0A |
| POWER ON MODE | AT / ATX (Default) Mode |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| Type-C DP | 1 x Type-C DP1.4a (Max Resolution: 4096 x 2304@60Hz) |
| HDMI® | 1 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz), 1 x HDMI® 1.4 (Max Resolution: 4096 x 2160@30Hz) |
| MULTIPLE DISPLAY | Support 3 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 2 x RJ45 for Intel® I226-V 2.5GbE |
| SYSTEM I/O | |

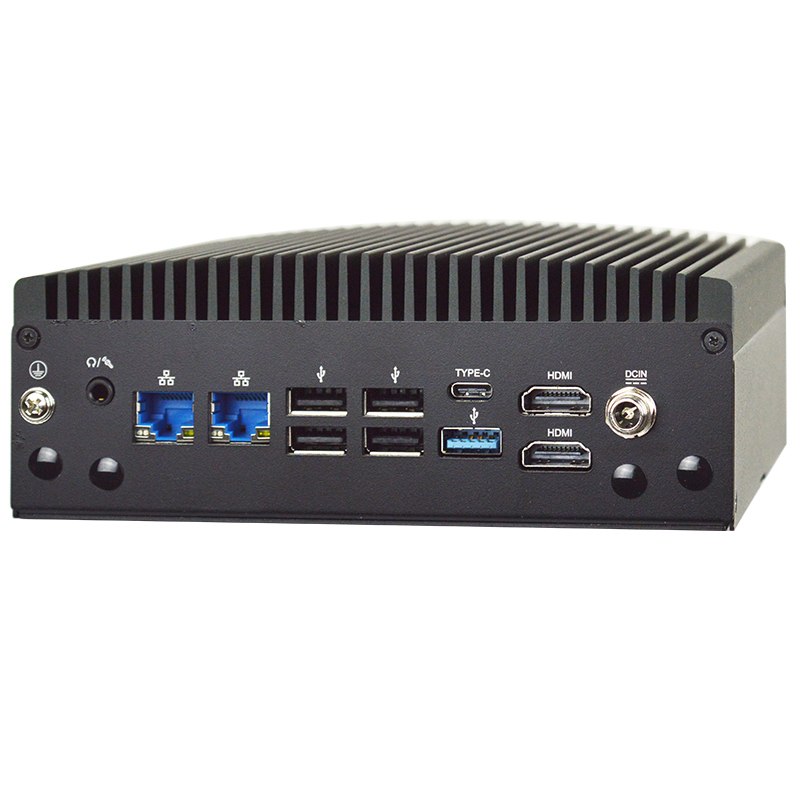

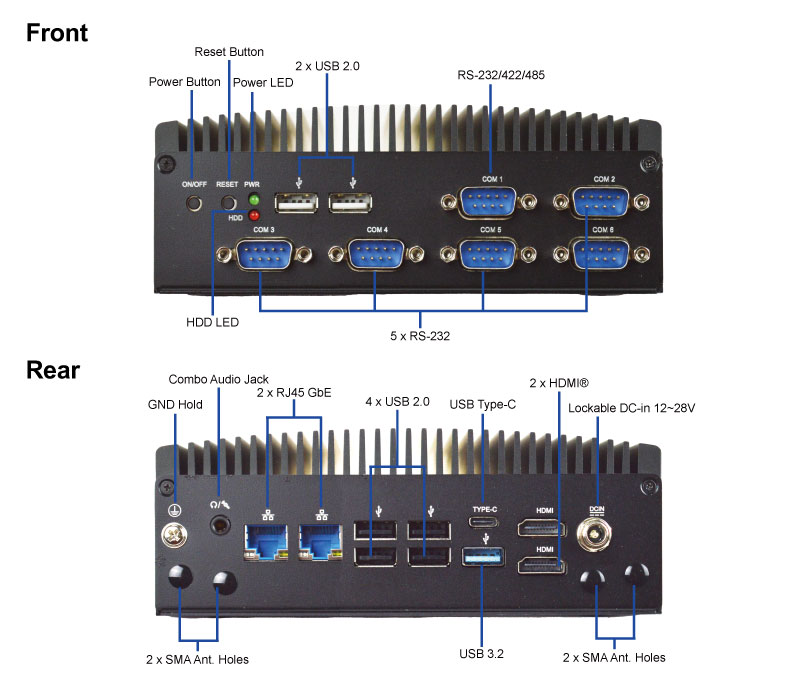

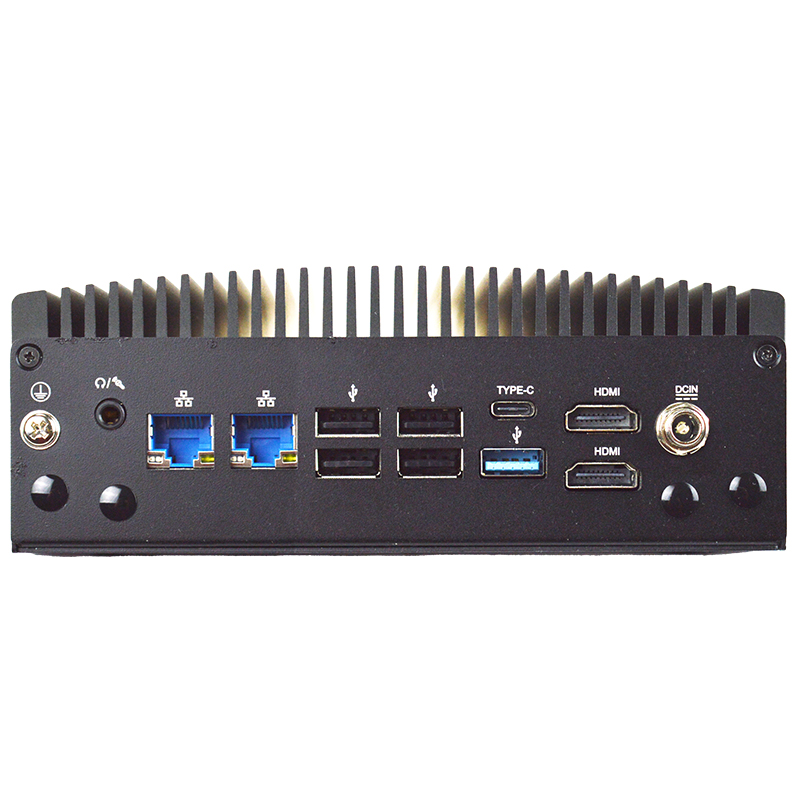

| REAR PANEL I/O | 4 x USB 2.0 1 x USB 3.2 Gen 2x1 Type-C (10Gbps) Support DP ALT Mode 1 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) 2 x HDMI® 1 x DC-in (Lockable) 2 x RJ45 4 x Antenna Holes 1 x Audio ( Line out, MIC) 1 x GND Hold |
| FRONT PANEL I/O | 1 x RS-232/422/485 5 x RS-232 2 x USB 2.0 1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED |
| STORAGE | |
| SATA | 1 x 2.5” SATA III 6Gb/s internal drive bay |
| EXPANSION | |
| M.2 | 1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) 1 x M-Key 2280 (PCIe 3.0 x2) Support NVMe |
| SIM | 1 x Nano SIM Card Slot |
| MECHANICAL | |
| MOUNTING | Desktop, Wallmount, Din Rail |

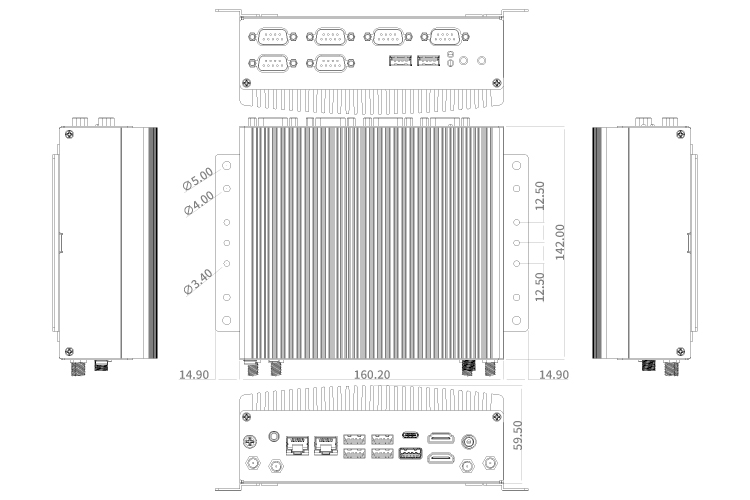

| DIMENSIONS (W x H x D) | 160.2 (W) x 142.0 (D) x 59.5 (H) mm |
| NET WEIGHT | 1.4 kg |
| CONSTRUCTION | Aluminum Heatsink + Metal Chassis |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -40°C ~ 60°C (-40°F ~ 140°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| HCS3XXDINRAILPS-F | DIN Rail Clips | 2 |
| LCSC306M06B-F | Screws for DIN Rail Clips | 6 |
| PART NUMBER | DESCRIPTION | QTY |
| BFLFASL1 | BFLFASL1 Barebone | 1 |
| HCSFBMWM01B-F | Wallmount Kit | 2 |
| L01AS052-F | Lockable Adapter 12V/5A 60W | 1 |
| LCSCHBJC3XX-F | Screw Pack | 1 |
| Change according to shipping area | Power Cord (Region Specific) | 1 |
| G01-SATA7+15-200-F | SATA Cable | 1 |
| HCS501HS3-1F | DRAM Thermal Pads | 2 |
| PART NUMBER | BFLFASL1-A111 | BFLFASL1-A211 | BFLFASL1-A311 | BFLFASL1-A411 |
| CPU | Intel® Atom® x7433RE Processor | Intel® Atom® x7433RE Processor | Intel® Atom® x7425E Processor | Intel® Atom® x7425E Processor |
| SECURITY | Intel® PTT (fTPM) | TPM 2.0 (dTPM) | Intel® PTT (fTPM) | TPM 2.0 (dTPM) |
