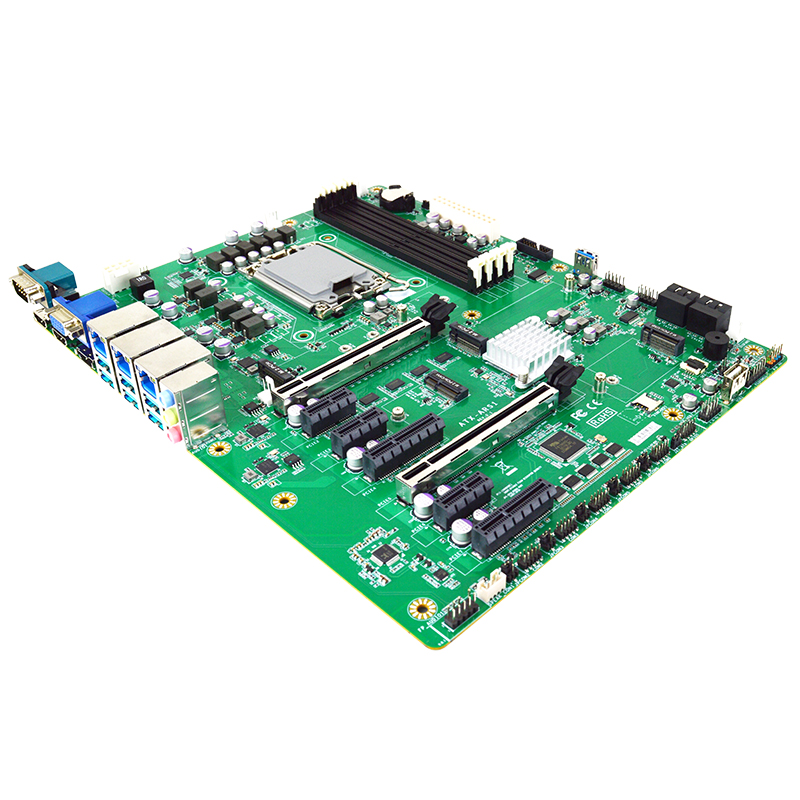

ATX-ARS1-Q870

ATX with Intel® LGA1851 Socket, Processor Arrow Lake-S Intel® Q870 supports AI boost

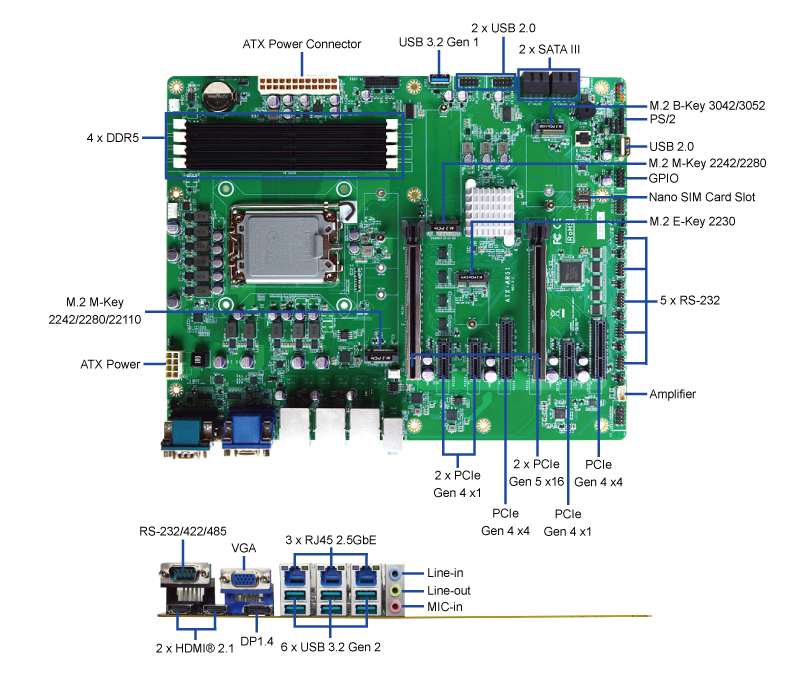

Features

  • Powered by Intel® LGA1851 Gen Socket Processor (Formerly Alder Lake-S, TDP 125W)
  • High-Speed Memory Support: 4 x DDR5 6400MT/s Dual Channel U-DIMM, up to 256GB
  • Triple 2.5GbE Networking: 3 x Intel® 2.5GbE Ethernet ports
  • Versatile Storage Options: 4 x SATA III with RAID 0/1/5/10, 2 x M.2 M-key (NVMe & SATA)
  • Multiple Expansion Slots: 1 x B-Key, 1x E-Key, 2 x PCIe Gen.5 x16, 2 x PCIe Gen.4 x4, 3 x PCIe Gen.3 x1
  • Comprehensive Quad Display Support: 2 x 4K HDMI 2.1 TMDS, 1 x 4K DP, and VGA
  • Rich Connectivity: 9 x USB 3.2, 7 x USB 2.0, 6 x COM , 1 x 8 bits GPIO
  • Enhanced Security: Onboard TPM 2.0 (optional)
