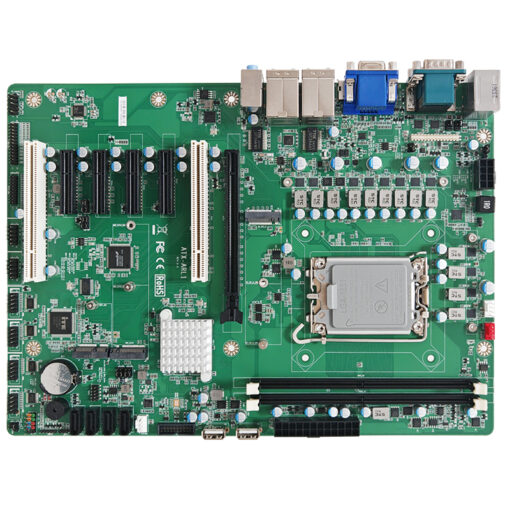

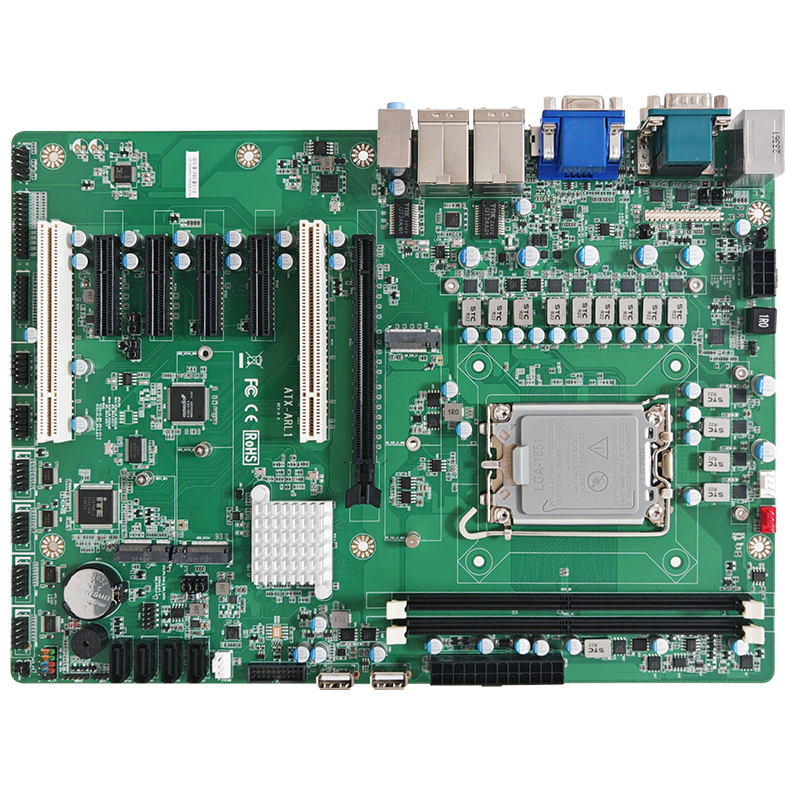

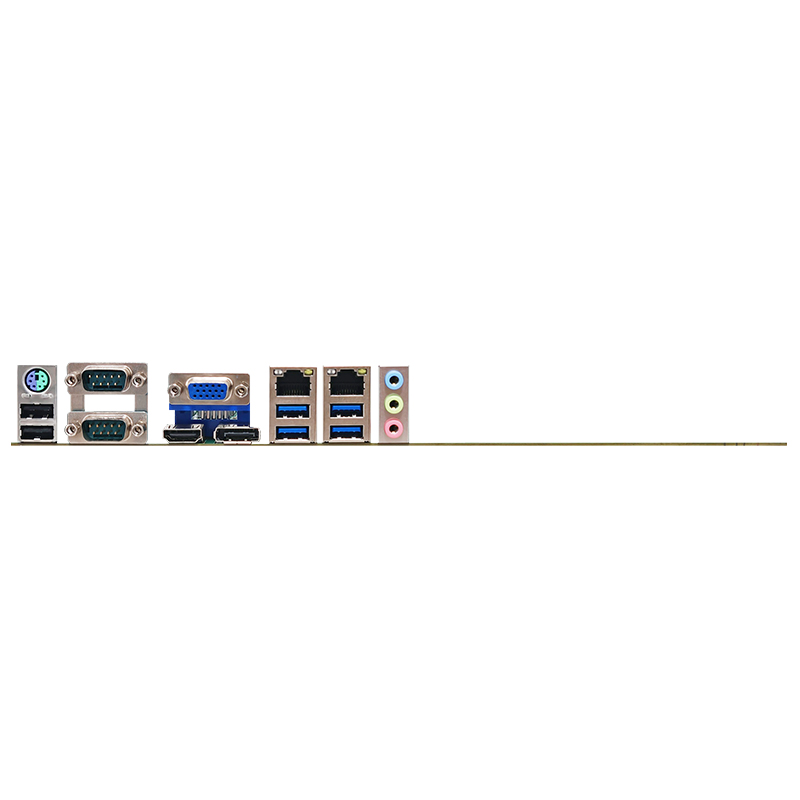

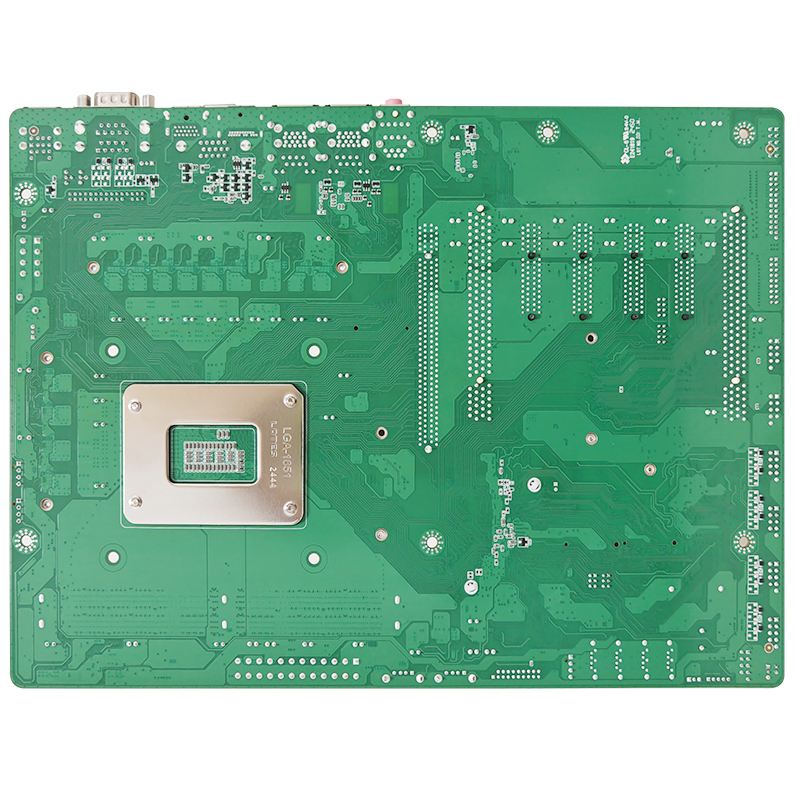

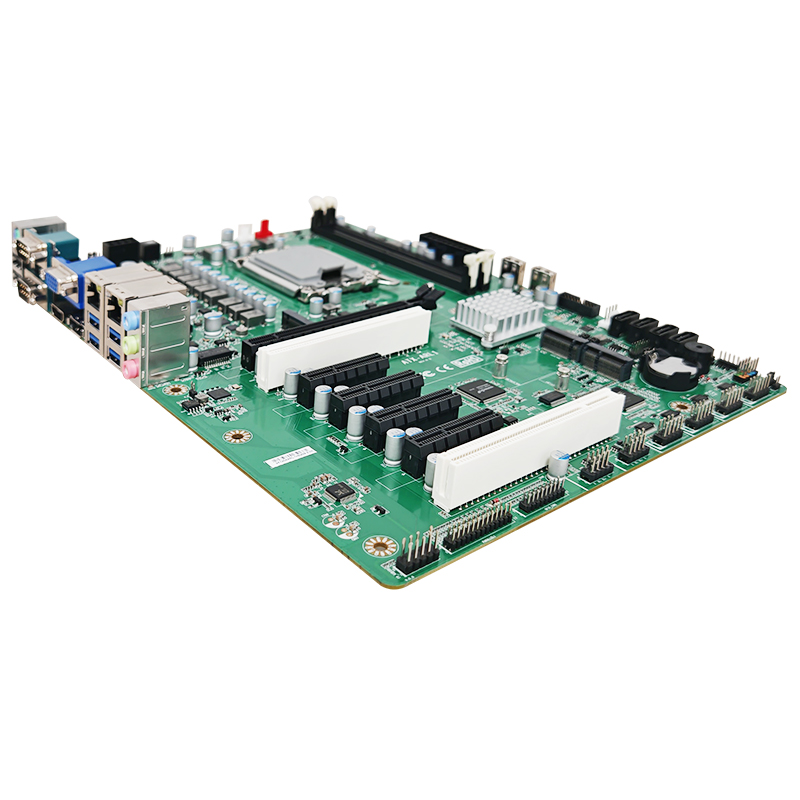

ATX-ARL1-B86000A1

305*220mm size with Ultra series LGA1851 Socket Processor , DDR5 up to 96GB, support 3 display

Features

  • Intel® LGA1851 Socket Processor (Max.125W TDP)
  • Intel® Arrow Lake-S B860 Chip
  • 2 x DDR5 6400MHz UDIMM up to 96GB
  • 1 x VGA, 1 x HDMI®, 1 x DP, 1 x eDP(Option)
  • 1 x 2.5GbE LAN, 1 x GbE LAN
  • 6 x COM, 6 x USB3.2 (Gen.1), 6 x USB2.0, 2 x USB2.0 Type-A（Vertical）
  • 1 x M.2 M-key, 2242/2280(SATA Interface), 1 x M.2 M-key, 2242/2280(NVMe，PCI-Ex4 Interface), 1 x M.2 E-key, 2230(CNVi/PCI-Ex1+USB2.0 Interface)
  • 1 x PCI-Ex16(Gen.4), 2 x PCI-Ex4 (Gen.3), 2 x PCI-Ex1(Gen.3), 2 x PCI

　Inquiry

Category:
SYSTEM
MB FORM FACTORATX
CPUIntel® LGA1851 Socket Ultra 9/7/5th Gen Processor (Max. TDP 125W)
CHIPSETIntel® Arrow lake-S B860
MEMORY2 x DDR5 6400MT/s, Dual Channel U-DIMM, up to 96GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery

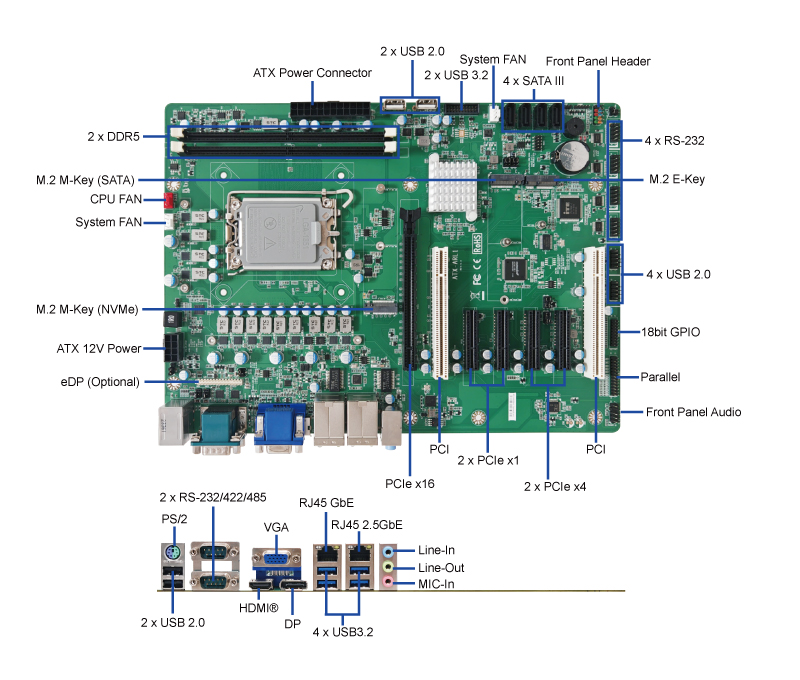

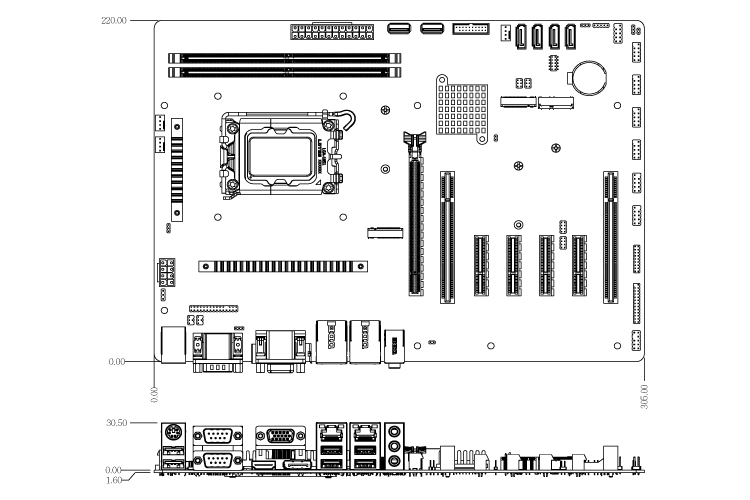

DIMENSION (W X D)305.0 (W) x 220.0 (D) mm (12" x 8.7")
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTATX Power Supply
POWER ON MODEAT / ATX (Default) Mode
CONNECTOR24+8-pin ATX PWR
DISPLAY
GPUIntel® HD Graphics
eDP1 x eDP (Max Resolution: 2560 × 1600@60Hz)
DP1 x DP2.1 (Max Resolution: 7680x4320@60Hz)
HDMI®1 x HDMI® 2.0 (Max Resolution: 4096 x 2304@60Hz)
VGA1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek ALC897
Line-in1 x Audio Jack for Line-In
Line-out1 x Audio Jack for Line-Out
MIC-in1 x Audio Jack for MIC-In
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I219-V GbE
USB PORT
USB8 x USB 2.0
6 x USB 3.2 Gen 1x1 (5Gbps, Formerly USB 3.1 Gen 1)
SERIAL PORT
COM2 x DB-9 for RS-232/422/485
Internal Header for 4 x RS-232
INTERNAL I/O
GPIO16 bit GPIO (5V) Co-lay LPT
SMBUSYes
FAN1 x CPU Fan Header
2 x System Fan Header
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA4 x SATA III
EXPANSION
M.21 x M-key 2242/2280 (SATA interface, Co-lay SATA4)
1 x M-key 2242/2280 (PCIe Gen5x4) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVio for Wi-Fi
PCIe1 x PCI-Ex16 (Gen.4) slot
4 x PCI-Ex4 (Gen.4, PCIE2/PCIE3 Interface: PCI-Ex1) slots
2 x PCI
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 70°C (-4°F ~ 158°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS
REACH
PART NUMBERDESCRIPTIONQTY
F04-MB-060-1FLA31 2U/PS2+2COM+HDMI+HDMI/VGA+UL+UL+3JK1
G01-SATA3-BL-1FCABLE for SATA3 50cm Blue w/LOCK2
G01-COM9X2-30A-1FCABLE +COM9x2 K=10 30cm無轉折+鐵片1
F04-MB-060-1FLA31 2U/PS2+2COM+HDMI+HDMI/VGA+UL+UL+3JK1
G01-SATA3-BL-1FCABLE for SATA3 50cm Blue w/LOCK2
G01-COM9X2-30A-1FCABLE +COM9x2 K=10 30cm無轉折+鐵片1
PART NUMBERATX-ARL1-B86000A1ATX-ARL1-B86002A1ATX-ARL1-H81000A1ATX-ARL1-H81002A1ATX-ARL1-H81000A1ATX-ARL1-H81002A1
CPUIntel® Arrow Lake-S B860 ChipIntel® Arrow Lake-S B860 ChipIntel® Arrow Lake-S Processor H810Intel® Arrow Lake Processor H810Intel® Arrow lake-S H810 ChipIntel® Arrow lake-S H810 Chip
MEMORY2 x DDR5 6400MT/s U-DIMM up to 96GB2 x DDR5 6400MT/s U-DIMM up to 96GB2 x DDR5 6400MT/s U-DIMM up to 96GB2 x DDR5 6400MT/s U-DIMM up to 96GB2 x DDR5 6400MT/s U-DIMM up to 96GB2 x DDR5 6400MT/s U-DIMM up to 96GB
SECURITYTPM2.0TPM2.0TPM2.0
POWER REQUIREMENTATX Power SupplyATX Power SupplyATX Power SupplyATX Power SupplyATX Power SupplyATX Power Supply
GPUIntel® HD GraphicsIntel® HD GraphicsIntel® HD GraphicsIntel® HD GraphicsIntel® HD GraphicsIntel® HD Graphics
eDP1 x eDP1 x eDP1 x eDP1 x eDP1 x eDP1 x eDP
DP1 x DP1 x DP1 x DP1 x DP1 x DP1 x DP
HDMI1 x HDMI®1 x HDMI®1 x HDMI®1 x HDMI®1 x HDMI®1 x HDMI®
VGA1 x VGA1 x VGA1 x VGA1 x VGA1 x VGA1 x VGA
MULTIPLE DISPLAYSupport 4 DisplaysSupport 4 DisplaysSupport 4 DisplaysSupport 4 DisplaysSupport 4 DisplaysSupport 4 Displays
ETHERNET1 x GbE1 x GbE1 x GbE1 x GbE1 x GbE1 x GbE
ETHERNET1 x 2.5GbE1 x 2.5GbE1 x 2.5GbE1 x 2.5GbE1 x 2.5GbE1 x 2.5GbE
USB8 x USB 2.08 x USB 2.06 x USB 2.06 x USB 2.04 x USB 3.2 Gen 14 x USB 3.2 Gen 1
USB6 x USB 3.2 Gen 16 x USB 3.2 Gen 14 x USB3.2 Gen 14 x USB3.2 Gen 16 x USB 2.06 x USB 2.0
USB2 x USB 2.0 Type-A (Vertical)2 x USB 2.0 Type-A (Vertical)2 x USB 2.0 Type-A (Vertical)2 x USB 2.0 Type-A (Vertical)
COM4 x RS-2324 x RS-2324 x RS-2324 x RS-2324 x RS-2324 x RS-232
COM2 x RS-232/422/4852 x RS-232/422/4852 x RS-232/422/4852 x RS-232/422/4852 x RS-232/422/4852 x RS-232/422/485
SATA4 x SATA III4 x SATA III4 x SATA III4 x SATA III4 x SATA III4 x SATA III
M.22 x M-Key 2242/22802 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/22802 x M-Key 2242/22802 x M-Key 2242/2280
M.21 x E-Key 22301 x E-Key 22301 x E-Key 22301 x E-Key 22301 x E-Key 22301 x E-Key 2230
PCIE1 x PCIe x161 x PCIe x161 x PCIe x161 x PCIe x161 x PCIe x161 x PCIe x16
PCIE4 x PCIe x44 x PCIe x41 x PCIe x41 x PCIe x44 x PCIe x44 x PCIe x4
PCIE2 x PCIe x12 x PCIe x12 x PCIe x12 x PCIe x12 x PCI2 x PCI
OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)0°C ~ 60°C (32°F ~ 140°F)0°C ~ 60°C (32°F ~ 140°F)0°C ~ 60°C (32°F ~ 140°F)0°C ~ 60°C (32°F ~ 140°F)0°C ~ 60°C (32°F ~ 140°F)

Note: All specifications are subject to change without notice.
