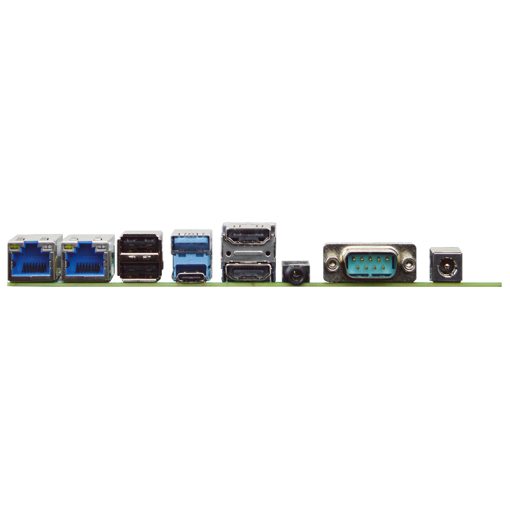

MTX-ASL1

Mini-ITX with Intel Atom® Processor X Series Intel® SoC
Features

  • Power by Onboard Intel® Atom® Processor X Series 7433RE (formerly Amston Lake)
  • Versatile Display Options: Support 1 x Type C DP, 2 x 4K HDMI and 1 x LVDS/eDP Outputs
  • Dual Ethernet Ports: 2 x 2.5GbE for fast and reliable netwoking
  • Storage Expansion: 1 x SATAIII, 1 x M.2 M-key NVMe
  • Addtional Expansion: 1 x M.2 E-key, 1 x M.2 B-key
  • Comprehesive I/O: 1 x USB 3.2, 1 x USB 3.2 Type C, 2 x USB 2.0 and 6 x COM ports
  • Wide Range Power Input: DC-in 12–28V for robust industrial flexibility
  • Security Enhance: Support Onboard TPM2.0 (option)

　Inquiry

Category:
SYSTEM
MB FORM FACTORMini-ITX
CPUOnboard Intel Atom® x7433RE Processor (Formerly Amston Lake, TDP 9W)
Onboard Intel Atom® x7211RE Processor (Formerly Amston Lake, TDP 6W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0
RTC BATTERYLithium Battery
DIMENSION (W X D)170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~28V
POWER ON MODEAT / ATX
CONNECTORDC Jack
4-pin Header
DISPLAY
GPUIntel® UHD Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1080 @60Hz / Co-Lay eDP)
Type C DP1 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Combo Audio Jack for Line-Out / Mic-In
AMPLIFIER3W
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USB1 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
1 x USB 3.2 Gen 2x1 Type-C (10Gbps) Support DP ALT Mode
2 x USB 2.0
Internal Header for 4 x USB 2.0
SERIAL PORT
COM1 x DB-9 for RS-232/422/485 with 5V/12V header
Internal Header for 5 x RS-232 with 5V/12V header
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x CPU Fan Header
1 x System Fan Header
FRONT PANELHDD Active LED
Power On/Off
Power LED
Reset
ADDITIONAL1 x PS/2
STORAGE
SATA1 x SATAIII
1 x SATA Power Connector
eMMCeMMC 64GB (optional)
EXPANSION
M.21 x M-Key 2242/2280 (SATA/PCIe 3.0 x2) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 75°C (-4°F ~ 167°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
PART NUMBERDESCRIPTIONQTY
MTX-ASL1 MTX-ASL1 MB1
F04-MB-101-FI/O Shield1
F07-FNJMI24-FHeatsink with Fan1
G01-COM-H2M22-1FCOM Port Cable2
G01-SATA3-BL-1FSATA Cable1
G01-PW4PS2S-322-1FSATA Power Y Cable1
F01-SP-A-BK-3FJumper1
PART NUMBERDESCRIPTIONQTY
L01AS059-FAdapter 19V/3.42A/ 65W1
PART NUMBERMTX-ASL1-72110010MTX-ASL1-72110210MTX-ASL1-74330010MTX-ASL1-74330210
CPUIntel® Atom® x7211RE ProcessorIntel® Atom® x7211RE ProcessorIntel® Atom® x7433RE ProcessorIntel® Atom® x7433RE Processor
SECURITYIntel® PTT (fTPM)TPM2.0Intel® PTT (fTPM)TPM2.0
POWER REQUIREMENTDC-in 12~28VDC-in 12~28VDC-in 12~28VDC-in 12~28V
GPUIntel® UHD GraphicsIntel® UHD GraphicsIntel® UHD GraphicsIntel® UHD Graphics
LVDS1 x LVDS/eDP1 x LVDS/eDP1 x LVDS/eDP1 x LVDS/eDP
TPYE C DP1 x Type C DP1 x Type C DP1 x Type C DP1 x Type C DP
HDMI2 x HDMI2 x HDMI2 x HDMI2 x HDMI
MULTIPLE DISPLAYSupport 3 DisplaysSupport 3 DisplaysSupport 3 DisplaysSupport 3 Displays
ETHERNET2 x 2.5GbE2 x 2.5GbE2 x 2.5GbE2 x 2.5GbE
USB1 x USB 3.2 Gen 21 x USB 3.2 Gen 21 x USB 3.2 Gen 21 x USB 3.2 Gen 2
USB1 x USB 3.2 Gen 2 Type C1 x USB 3.2 Gen 2 Type C1 x USB 3.2 Gen 2 Type C1 x USB 3.2 Gen 2 Type C
USB6 x USB 2.06 x USB 2.06 x USB 2.06 x USB 2.0
COM5 x RS-2325 x RS-2325 x RS-2325 x RS-232
COM1 x RS-232/422/4851 x RS-232/422/4851 x RS-232/422/4851 x RS-232/422/485
SATA1 x SATAIII1 x SATAIII1 x SATAIII1 x SATAIII
M.21 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/2280
M.21 x B-Key 3042/30521 x B-Key 3042/30521 x B-Key 3042/30521 x B-Key 3042/3052
M.21 x E-Key 22301 x E-Key 22301 x E-Key 22301 x E-Key 2230
SIM1 x Nano SIM Card Slot1 x Nano SIM Card Slot1 x Nano SIM Card Slot1 x Nano SIM Card Slot
OPERATING TEMPERATURE-20°C ~ 75°C (-4°F ~ 167°F)-20°C ~ 75°C (-4°F ~ 167°F)-20°C ~ 75°C (-4°F ~ 167°F)-20°C ~ 75°C (-4°F ~ 167°F)
