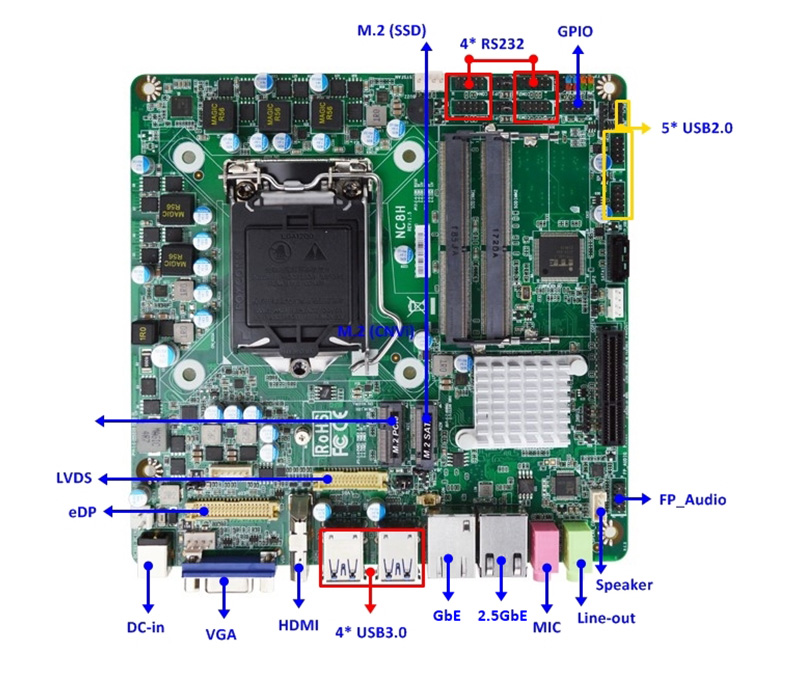

| SYSTEM | |
| MB FORM FACTOR | Thin Mini-ITX |
| CPU | Intel® LGA1151 8th Gen Socket Processor (Formerly Coffee Lake-S, TDP 65W) |
| CHIPSET | Intel® H310 |
| MEMORY | 2 x DDR4 2133MHz Dual Channel SO-DIMM, up to 64GB Actual memory support depends on the specific CPU and model |
| BIOS | AMI 128Mb Flash ROM |
| WATCHDOG TIMER | 255 Levels |
| DIMENSION (W X D) | 170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″) |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) |
| POWER | |
| POWER REQUIREMENT | DC-in 12~24V |
| POWER ON MODE | AT / ATX |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| LVDS | 1 x LVDS (Max. Resolution: 1920 x 1080 @60Hz, Co-lay eDP) |
| eDP | 1 x eDP1.3 (Max Resolution: 4096 x 2304@60Hz, co-lay with LVDS) |
| HDMI | 1 x HDMI 1.4 (Max Resolution: 4096 x 2160@30Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| MULTIPLE DISPLAY | Support 2 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I219-V GbE |
| USB PORT | |
| USB | 4 x USB 3.0 Internal Header for 5 x USB 2.0 |
| SERIAL PORT | |
| COM | Internal Header for 4 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| ADDITIONAL | 1 x Chassis intrusion 1 x PS/2 1 x Audio Header 1 x LVDS (co-layout eDP) 1 x eDP (co-layout LVDS) 1 x AT/ATX Mode Selection |
| STORAGE | |
| SATA | 1 x SATA III |
| EXPANSION | |
| M.2 | 1 x M-Key 2242 1 x E-Key 2230 (USB 2.0/PCIe) Support CNVi |
| PCIE | 1 x PCIE x4 |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION | EU RoHS China RoHS REACH |
TOP∧
| PART NUMBER | DESCRIPTION | QTY |
| JNC8HV-IH310 | JNC8HV-IH310 M/B | 1 |
| G01-SATA3-BL-1F | Cable for SATA III 50cm | 1 |
| G01-COM-H2M22-1F | COM Cable | 2 |
| F04-MB-075-F | I/O Shield | 1 |
TOP∧
| PART NUMBER | JNC8HV-IH310 |
| CPU | Intel® Socket LGA1151 CPU |
| POWER REQUIREMENT | DC-in 12~24V |
| GPU | Intel® HD Graphics |
| LVDS | 1 x LVDS/eDP |
| HDMI | 1 x HDMI |
| VGA | 1 x VGA |
| MULTIPLE DISPLAY | Support 2 Displays |
| ETHERNET | 1 x GbE |
| ETHERNET | 1 x 2.5GbE |
| USB | 4 x USB 3.0 |
| USB | 5 x USB 2.0 |
| COM | 4 x RS-232 |
| SATA | 1 x SATA III |
| M.2 | 1 x M-Key 2242 |
| M.2 | 1 x E-Key 2230 |
| M.2 | 1 x M-Key 2242 |
| M.2 | 1 x E-Key 2230 |
| PCIE | 1 x PCIE x4 |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
