B382FRPU1

搭載Intel® 第 13 代Core™ i5-1335U/1335UE 的無風扇嵌入式系統

特點

  • 搭載Intel® 第 13 代Core™ i5-1335U/1335UE（原 Raptor Lake-P，TDP 15W）
  • 高速網路：2 x 2.5GbE，實現快速可靠的連接
  • 儲存與擴充：1 x SATA III、1 x M.2 E-Key、1 x B+M Key 搭配 1 x Nano SIM 插槽
  • 彈性儲存：1 x M.2 M-key 2242/2280 (SATA III)、1 x M.2 M-key 2280
  • 綜合 I/O：4 x RS485/422/232、3 x USB 3.2 Gen 2、4 x USB 2.0、2 x RJ45
  • 多種安裝方式：支援桌面、壁掛和 DIN 導軌安裝

　Inquiry



Categories: ,
SYSTEM
MB FORM FACTOR3.5"
CPUOnboard Intel® 13th Gen Core™ i5-1335U (Formerly Raptor Lake-P, TDP 15W)
Onboard Intel® 13th Gen Core™ i5-1335UE (Formerly Raptor Lake-P, TDP 15W)
CHIPSETIntel® SoC
MEMORY2 x DDR5 4800MHz, Dual Channel SO-DIMM, up to 64GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0
RTC BATTERYLithium Battery
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~36V
90W Adapter: AC90~240V, DC19V/4.7A
POWER ON MODEAT / ATX (Default) Mode
DISPLAY
GPUIntel® Iris® Xe Graphics
Type C DP1 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
DP2 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek Audio Codec
AMPLIFIER3W
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
SYSTEM I/O
REAR PANEL I/O4 x Antenna Holes
1 x DC-in (Lockable)
2 x HDMI 2.0b
2 x DP 1.4
3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1 Type C
2 x RJ45
1 x Audio ( Line out, MIC)
1 x GND Hold
FRONT PANEL I/O1 x Power Button
1 x Reset Button
1 x Power LED
1 x HDD LED
4 x USB 2.0
4 x RS-232/422/485
STORAGE
SATA1 x 2.5” SATA III 6Gb/s internal drive bay (Max. Height 9.5 mm)
EXPANSION
M.21 x B+M-Key 2242 (SATA/PCIe 3×1) for SSD
1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
SIM1 x Nano SIM Card Slot
MECHANICAL
MOUNTINGDesktop, Wallmount, Din Rail
DIMENSIONS (W x D x H)185.0 (W) x 142.0 (D) x 61.0 (H) mm (7.28" x 5.6" x 2.4")
NET WEIGHT3.5 kg
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONChina RoHS
CMRT Report
TSCA Declaration
WEEE
REACH
PART NUMBERDESCRIPTIONQTY
B382FRPU1B382FRPU1 Barebone1
HCS370MWM01B-2-FWallmount Kit2
HCS3XXDINRAILPS-FBrackets DIN RAIL KITS2
L01AS062-FLockable Adapter 19V/4.74A 90W1
LCSCHBJC3XX-FScrew Pack1
Change according to shipping areaPower Cord (Region Specific)1
PART NUMBERB382FRPU1-A111B382FRPU1-A211B382FRPU1-A311B382FRPU1-A411
CPUIntel® Core™ i5-1335UIntel® Core™ i5-1335UIntel® Core™ i5-1335UEIntel® Core™ i5-1335UE
MEMORY2 x DDR5 SO-DIMM, up to 64GB2 x DDR5 SO-DIMM, up to 64GB2 x DDR5 SO-DIMM, up to 64GB2 x DDR5 SO-DIMM, up to 64GB
SECURITYIntel® PTT (fTPM)TPM2.0Intel® PTT (fTPM)TPM2.0
POWER REQUIREMENTDC-in 12~36VDC-in 12~36VDC-in 12~36VDC-in 12~36V
GPUIntel® Xe GraphicsIntel® Xe GraphicsIntel® Xe GraphicsIntel® Xe Graphics
TYPE C DP1 x Type C DP1 x Type C DP1 x Type C DP1 x Type C DP
DP2 x DP2 x DP2 x DP2 x DP
HDMI2 x HDMI2 x HDMI2 x HDMI2 x HDMI
MULTIPLE DISPLAYSupport 4 DisplaysSupport 4 DisplaysSupport 4 DisplaysSupport 4 Displays
ETHERNET2 x 2.5GbE2 x 2.5GbE2 x 2.5GbE2 x 2.5GbE
I/O4 x WIFI ANT4 x WIFI ANT4 x WIFI ANT4 x WIFI ANT
I/O1 x DC Jack1 x DC Jack1 x DC Jack1 x DC Jack
I/O3 x USB 3.2 Gen 23 x USB 3.2 Gen 23 x USB 3.2 Gen 23 x USB 3.2 Gen 2
I/O1 x USB 3.2 Gen 1 Type C1 x USB 3.2 Gen 1 Type C1 x USB 3.2 Gen 1 Type C1 x USB 3.2 Gen 1 Type C
I/O2 x RJ452 x RJ452 x RJ452 x RJ45
I/O1 x Audio (Line-out, MIC)1 x Audio (Line-out, MIC)1 x Audio (Line-out, MIC)1 x Audio (Line-out, MIC)
I/O1 x GND Hold1 x GND Hold1 x GND Hold1 x GND Hold
I/O1 x Power Button1 x Power Button1 x Power Button1 x Power Button
I/O1 x Reset1 x Reset1 x Reset1 x Reset
I/O1 x Power LED1 x Power LED1 x Power LED1 x Power LED
I/O1 x HDD LED1 x HDD LED1 x HDD LED1 x HDD LED
I/O4 x USB 2.04 x USB 2.04 x USB 2.04 x USB 2.0
I/O4 x COM4 x COM4 x COM4 x COM
SATA1 x 2.5” SATA Device1 x 2.5” SATA Device1 x 2.5” SATA Device1 x 2.5” SATA Device
M.21 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/22801 x M-Key 2242/2280
M.21 x E-key 22301 x E-key 22301 x E-key 22301 x E-key 2230
M.21 x B-key 3042/30521 x B-key 3042/30521 x B-key 3042/30521 x B-key 3042/3052
M.21 x B+M-Key 22421 x B+M-Key 22421 x B+M-Key 22421 x B+M-Key 2242
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)-20°C ~ 60°C (-4°F ~ 140°F)-20°C ~ 60°C (-4°F ~ 140°F)-20°C ~ 60°C (-4°F ~ 140°F)

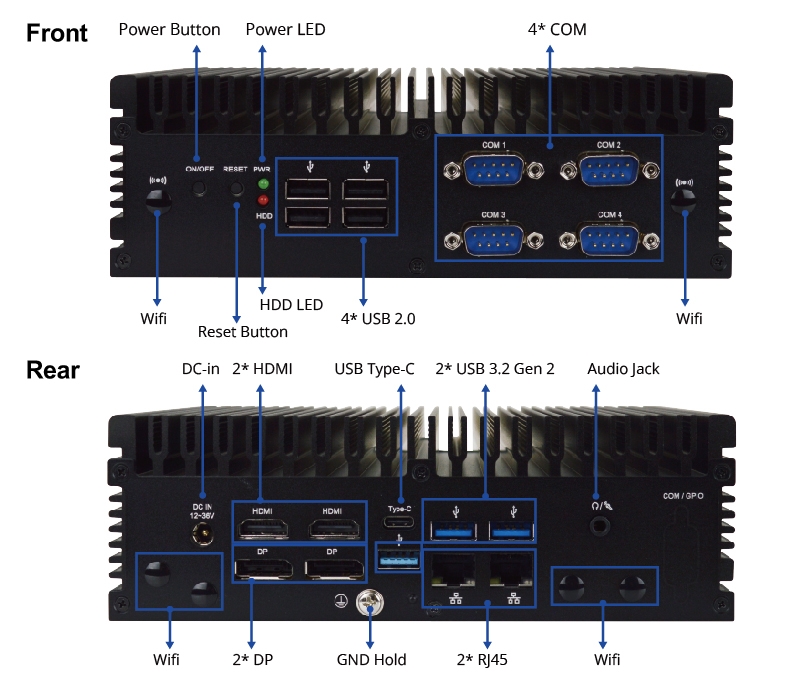

IO圖
TOP∧
機械圖
TOP∧

注意：所有規格如有更改，恕不另行通知。
