Specifications|Standard Accessories|I/O Diagram|Mechanical
Specifications | TOP∧ |
MB Model |
– JNC9AMXM-H310 |
Part No. |
– HBJC909C9A |
BIOS |
– AMI 128MB SMT Flash ROM |
CPU/Chipset |
– Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor (Max 35W) |
Memory |
– 2* DDR42133MHz up to 32GB |
Network |
– 1* Intel® I219LM GbE |
Storage |
– 1* 2.5” SATA 6Gb/s internal drive bay (only support 2.5″ HDD with a height ≤ 10mm) |
Rear Panel I/O |
– 4* USB3.1(Gen1) |
Internal Connector |
– 1* M.2 B Key Socket for 3G/4G Module |
Power Source |
– DC 12~36V input |
Compliance |
– CE, FCC, RoHS, ErP Ready (Option) |
Temperature |
– Operating Temperature: -10 ~ 50° C |
Dimensions |
– 279.8 (W) x 224.0 (D) x 115.9 (H) mm |
OS Support |
– Windows 10, Linux |
Warranty |
– 2 Years limited warranty |
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
Standard Accessories | TOP∧ |
Part Number |
Description |
Part Number |
Description |
HBJC909C9A |
J05-ANT-GX57245-F |
L-Antenna2G4/5G |
|
L01AS043-F |
Adapter 19V/180W/9.47A |
HCS9XXMWM01B-1F |
JC909_Wall mount |
Change according to shipping area |
Power cord |
|
|

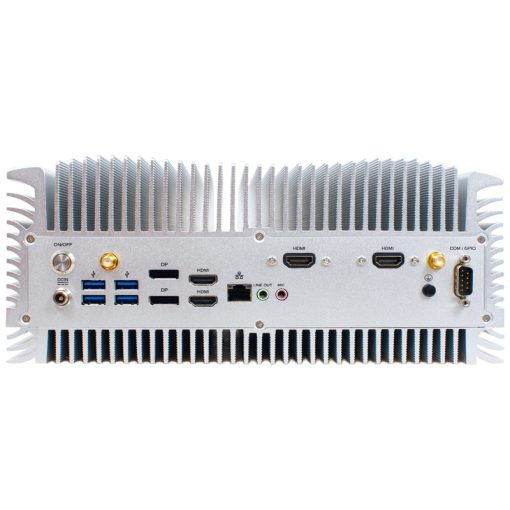

I/O Diagram | TOP∧ |
Rear
Mechanical | TOP∧ |
